Features

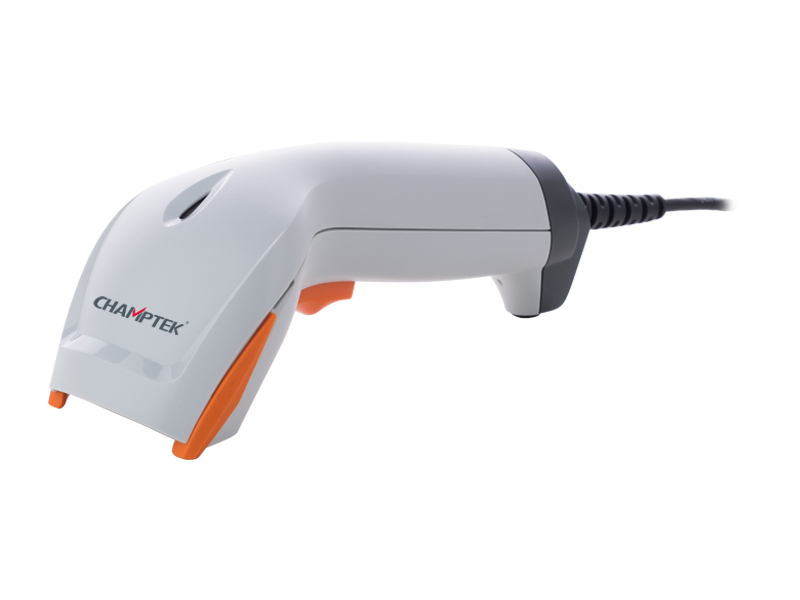

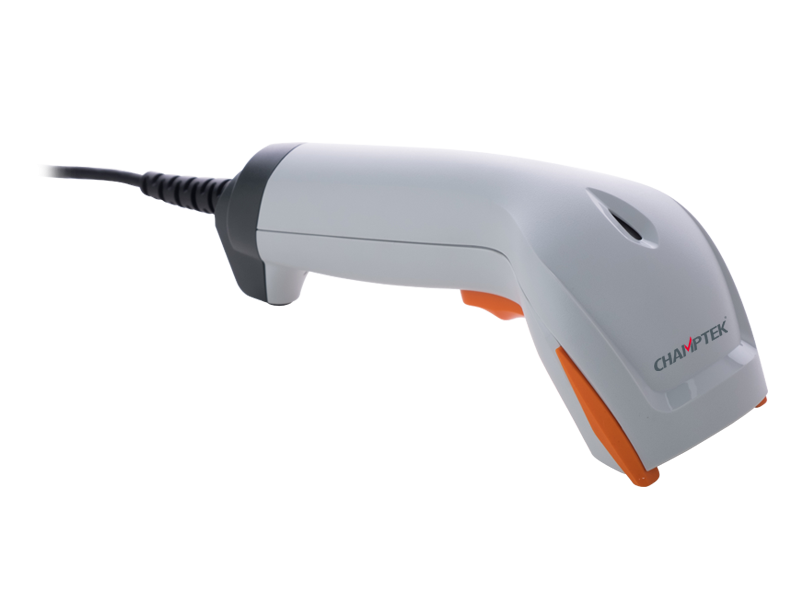

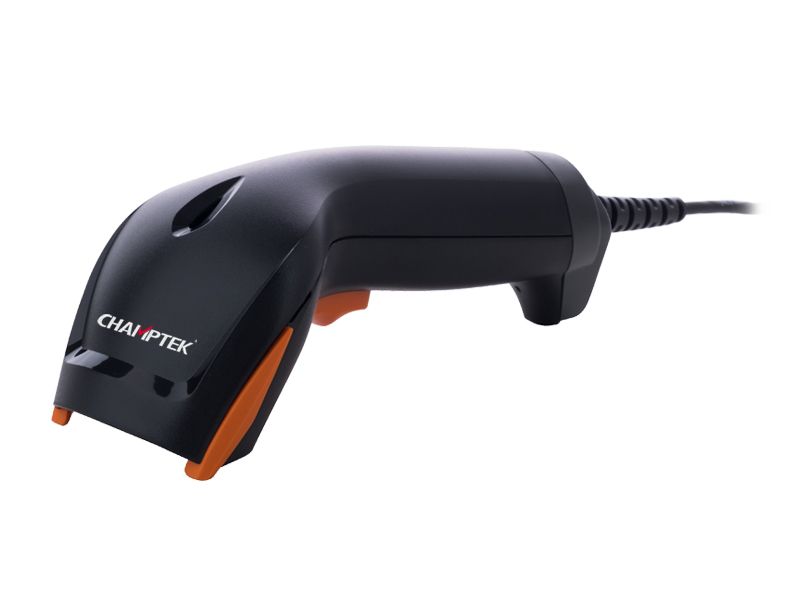

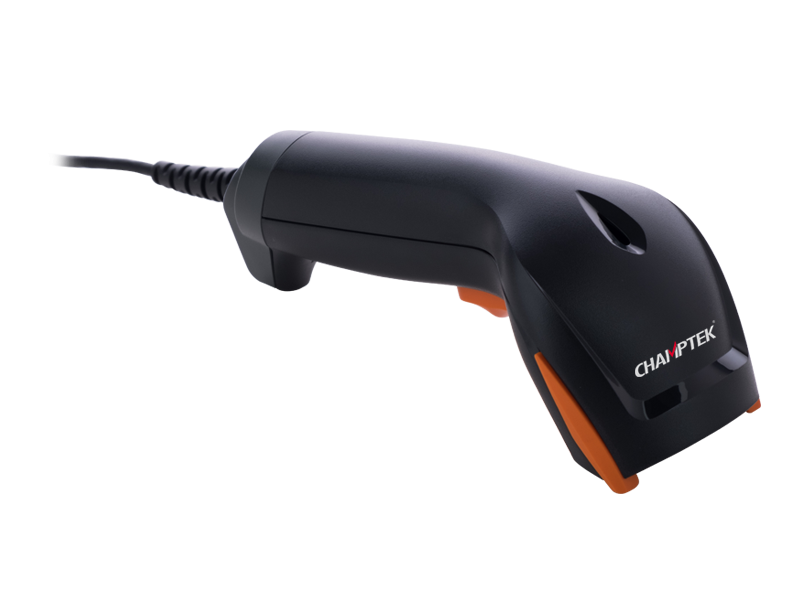

SG800 is a brand new general purpose gun-type linear imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment. SG800 has most modern design with rugged casing and supports IP42 sealing protection, with its auto-shuttle-emulation alike smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 550mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. An optional stand can be ordered to facilitate hand-free reading application. With its auto-sense mode, it will automatically turns off and senses a object in front of it to switch on reading, can extend its lifespan. In short, SG800 provides customer with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

  • Support major 1D and GS1 Databar linear and stacked codes.
  • Various configurable reading modes supported.
  • Have IP42 sealing protection and 70.86 inches (180cm) drop resistance.
  • By its intelligent activation switch, it can automatically switch over to auto-sense reading while being placing on the stand.
  • 3 in 1 Combo interface that changes interface by replacing cable.
  • Applicable on Android tablet or smart phone with optional cable.
  • 1D Codes
  • GS1
  • SG800

    SG800
  • Compare to

Tech Specs

Specifications

Dimension(WxDxH) Light Source Filed of View Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio
73.50 mm W x 173 mm D x 76.2 mm H Visible Red light 635nm ±5nm LED Smart detection, up to 500 scans per second Up to 550mm@20mil/0.5mm, PCS90%, Code39 4mil/0.1mm@PCS90%, Code39 Horizontal: 45° Beep and LED (Good read Green) 70.86 inches(180cm) drop on concrete surface 25%
- 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm(Scanner) L123 x W88.5 x H70 (Cradle) L167x W70 x H88mm - 169.2 x 71.1 x 62.6 mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm - White light LED White light LED Visible Red light 635±5nm LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer 632±5nm Red LED 632±5nm Red LED 625±5nm Red LED 625±5nm Red LED 650±10nm VLD 650±10nm VLD - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal: 45° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° Horizontal: 45° Horizontal: 45° Horizontal: 40°, Vertical: 25° Horizontal: 40°, Vertical: 25° Horizontal: 45° Horizontal: 45° - - - Up to 550mm@20mil/0.5mm, PCS90%, Code39 - - - 320 mm@20mil/0.5mm, PCS90%, Code39 - 420 mm@20mil/0.5mm, PCS90%, Code39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 4mil/0.1mm@PCS90%, Code39 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 4mil/ 0.1mm 4mil/ 0.1mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 5mil/0.127mm 5mil/0.127mm - 60 fps 60 fps (at full resolution) Smart detection, up to 500 scans per second 60 fps (at full resolution) - - Motion toerlance 25cm per second - Motion tolerance: 35cm per second Smart detection, up to 500 scans Smart detection, up to 500 scans 1D mode: 120 scans; 2D mode: 60 images 60 images per second 50 scans ±5% 50 scans ±5% - - Beeper and LED Beep and LED (Good read Green) - Beep and LED Beep and LED - Beep and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED - 59.05 inches (150cm) drop on concrete surface - 59.05 inches(150cm) drop on concrete surface 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) 47.2 inches(120cm) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model);1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model); 1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) - PCS30%@5mil/0.127mm - 25% PCS25% PCS25% >=25% >=25% >=PCS15% ≥15% 25% 25% 25% 25% 30% 30%

Electrical Characteristics

Interface Power
RS232, USB (HID, Virtual COM) DC 5V
- RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) - USB or RS-232, cable is non-replaceable - Support USB HID, Virtual COM and RS-232 interfaces. - RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW - DC 5V DC 5V DC 5V DC 5V - - - - - DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • P/N3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  3. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • P/N0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
