LYRA L-9090i

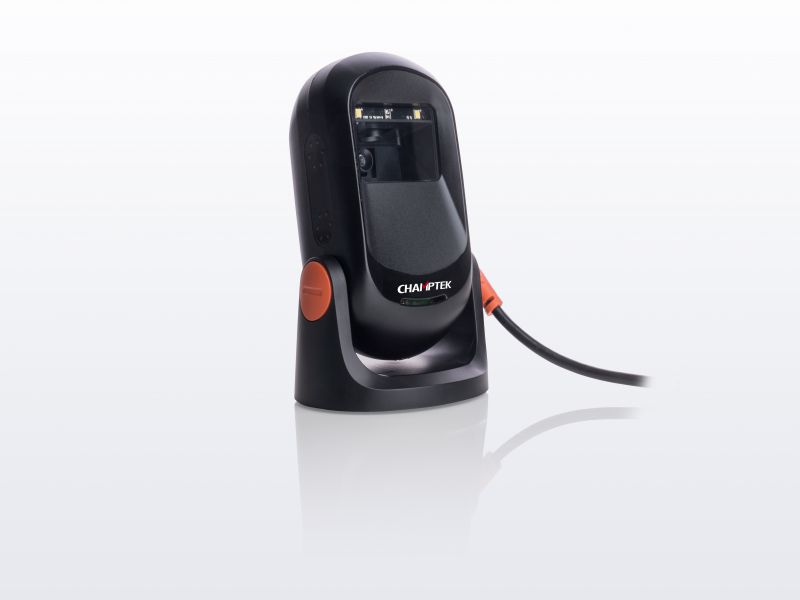

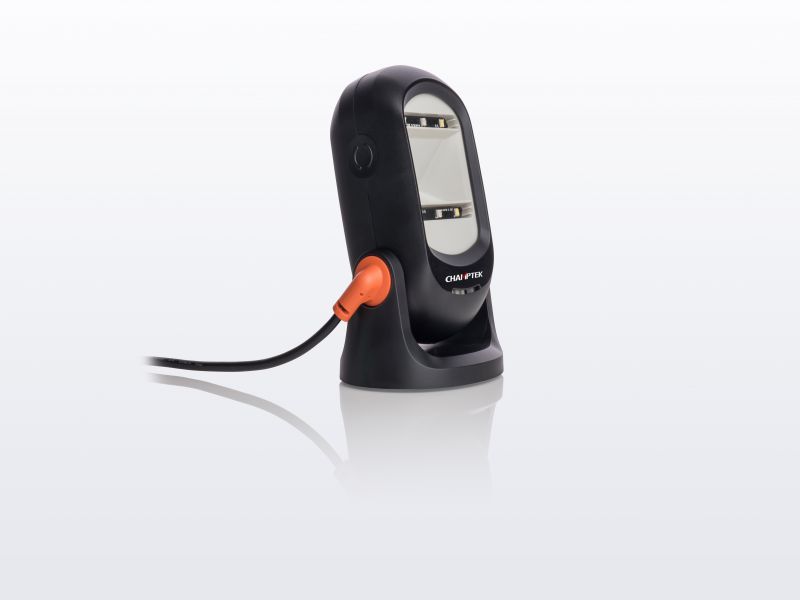

Dual scanning faces LYRA L-9090i Desktop Presentation Area Imager Barcode Scanner

LYRA L-9090i
LYRA L-9090i
LYRA L-9090i
LYRA L-9090i
  • LYRA L-9090i
  • LYRA L-9090i
  • LYRA L-9090i
  • LYRA L-9090i

Features

The LYRA family is a multi-form, compact size, omni-directional presentation area-imaging scanner engineered to decode all standard 1D and 2D barcodes. Its revolutionary imaging technology is housed in an elegant, stylish, yet durable design. The compact size and small foot-print design, makes it the ideal solution for space-constrained environments. With LYRA L-9090i patenting dual scanning faces, one side is for cashier and the other for customer to scan any 1D or 2D bar code from the printed labels in retail that identify product or mobile bar codes on the screen of a mobile phone, and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. The LYRA provides all the features you need to keep your workers productive; intuitive and fast reading performance; true point-and-shoot scanning simplicity — no need to align bar code and scanner; and hands-free and handheld flexibility. The LYRA reader includes powerful configuration tool, programming bar code and data formatting functionality which allow easy integration into existing or new host systems, management to manage maintenance.

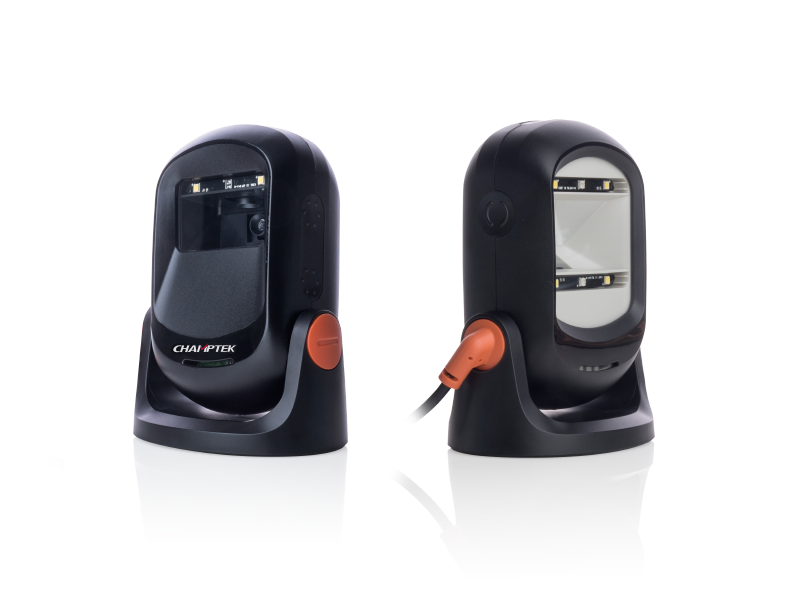

  • Patenting dual scanning faces, one side is for cashier and the other for customer.
  • Scans most 1D and 2D bar codes on paper, mobile phones and computer displays.
  • With the most compact size and small foot-print can fit in the most space constrained areas.
  • Support hands-free and handheld scan.
  • Multi-code mode allows simultaneous scanning of a group of bar codes.

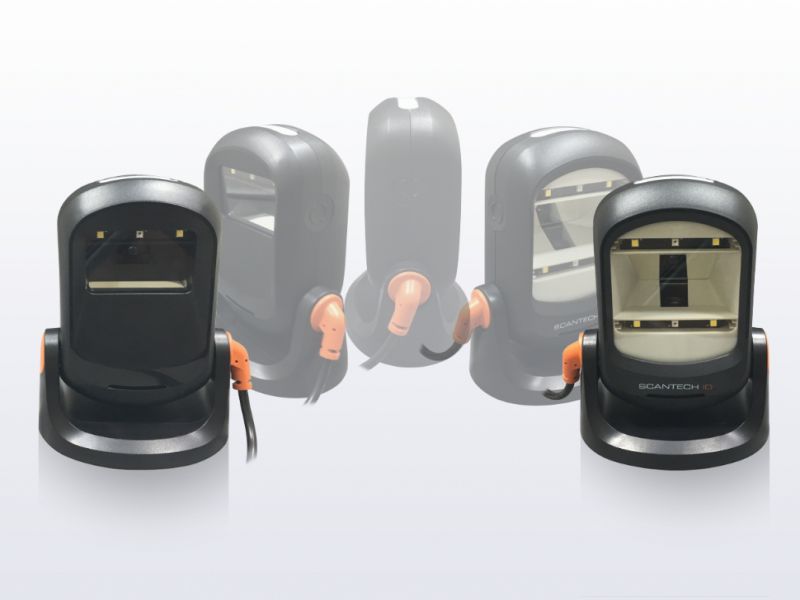

  • Scanner head can be forward and backward adjusted in a total 180° range to accommodate to your application.
  • Available configuration tool and data formatting functionality eliminating the need for host system modifications.
  • Both contact and air 20KV Electro-Static discharge.
  • Lightweight and ergonomic design, best cost-effective investment.
  • 1D Codes
  • 2D Codes
  • GS1

  • LYRA L-9090i

    LYRA L-9090i

  • Compare to

Tech Specs

Specifications

Dimension(WxDxH) Available Color Light Source Filed of View Depth of Field Resolution Indicators Operating Temp. Storage Temp.
97.89 x 74.89 x 137.64 mm Black Visible White LED Horizontal – 55°, Vertical – 35° (dual faces) Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 1280 (H) x 800 (V) pixels; 3.0 mil (Code 39), 8 mil (QR Code) Beep and LED (Standby Orange, Good read Blue) 0°C to 50°C ( 32°F to 122°F ) -20°C to 70°C ( -4°F to 158°F )
- Dimension(WxDxH) 116x84.5(upper)x164 mm / 116x100(bottom)x164 mm - 97.89 x 74.90 x 137.94 mm 77 x 100 x 123 mm - 94 x 97.71 x 161.51 mm 94 x 97.71 x 161.51 mm 67x62x46mm (body only) 67x62x46mm (body only) - - - - White - - - - - - 650nm ± 10nm Laser diode White / RED LED Visible White LED White Light LED - 625± 10nm Red LED 650±10nm VLD 650±10nm VLD 625±10nm VLD - - 86° FOV Horizontal, 70° FOV Vertical Horizontal – 55°, Vertical – 35° Horizontal – 38°, Vertical – 30° - Horizontal: 40°, Vertical: 25° - - Horizontal: 40°, Vertical: 25° - Up to 240mm@13mil/0.33mm, PCS90%, Code 39 20-50mm Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 - - Up to 230mm@13 mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 - - - 3.0 mil (Code 39), 8 mil (QR Code) 1D: 4.0 mil/0.1mm, 2D: 6.67mil/0.17mm - 1D: 4mil/0.1mm, 2D: 8mil/0.2mm 5mil/0.127mm 5mil/0.127mm 1D: 4mil/0.1mm, 2D: 8mil/0.2mm - Beeper and LED - Beep and LED Beep - Beeper and LED Beeper and LED Beeper and LED Beeper and LED - - - 0°C to 50°C ( 32°F to 122°F ) - - - - - - - - - -20°C to 70°C ( -4°F to 158°F ) - - - - - -

Electrical Characteristics

Interface Power
RS232, USB (HID or Virtual COM) DC 5V @2A
- RS232, USB(HID, Virtual COM) - RS232, USB(HID, Virtual COM) - - RS232, USB(HID, Virtual COM) RS232, USB(HID, Virtual COM), KBW, Power USB (option) RS232, USB(HID, Virtual COM), KBW, Power USB (option) RS232, USB(HID, Virtual COM) - DC 5V @2A 1.75W DC 5V @2A DC Adaptor +5V ±5% - DC 5V @2A DC 5V @2A DC 5V @2A DC 5V @2A
Configuration Quick Guide Datasheet E-Catalogue
Download Download Download
