Features

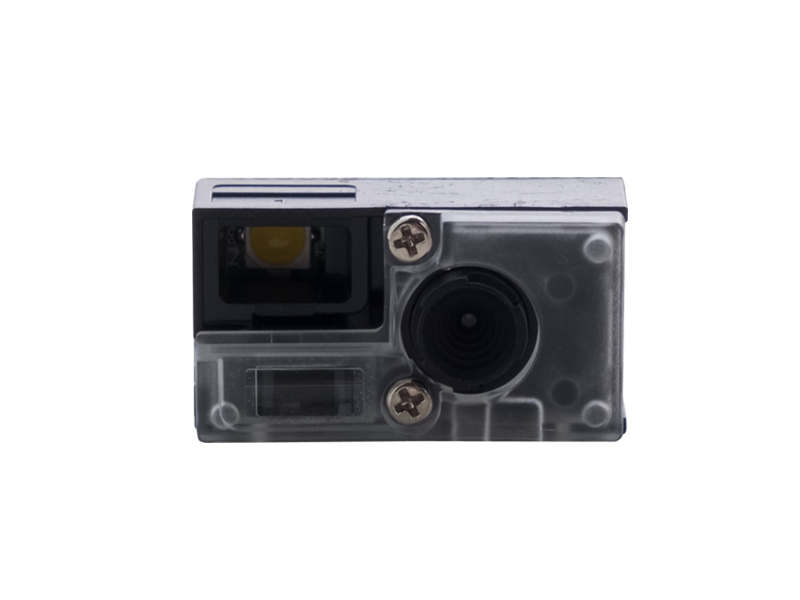

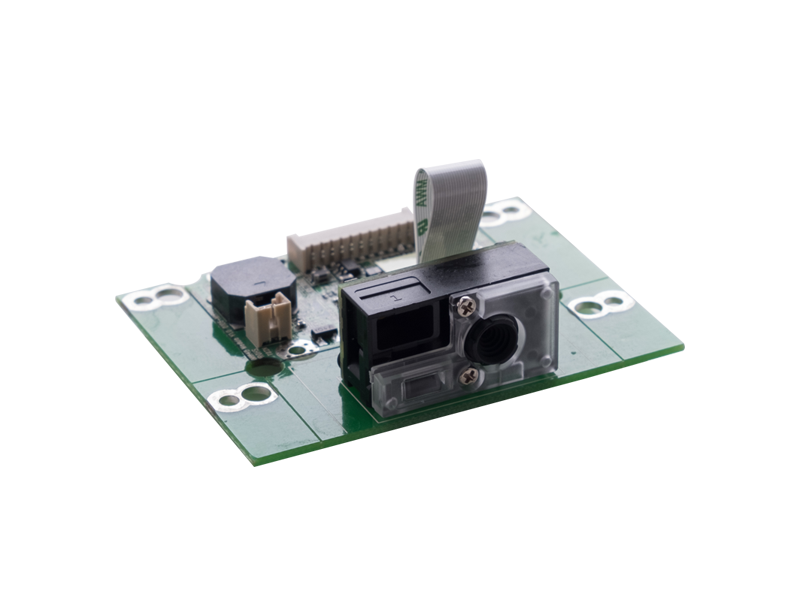

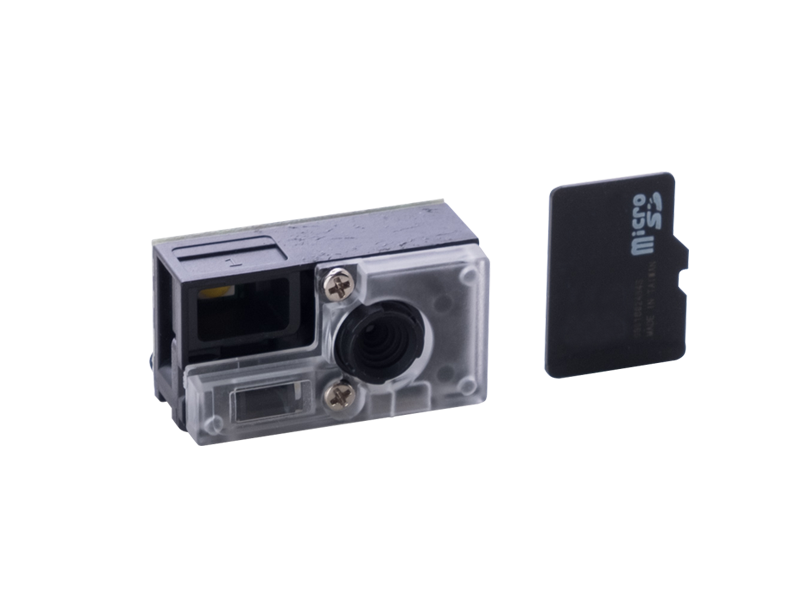

The MIR4W module is a high performance, omni-directional area imager barcode scanner. It delivers the same high-quality when your products need to capture 1D and 2D bar codes. It has good capability to read bar codes that are printed on paper labels or displayed on the screen of a mobile phone or computer; and the rapid scanning speed that protects worker productivity and the customer experience. With the MIR4W, you can create products that will make a difference for your customers — and their customers. It is designed for various built-in and OEM solutions, such as self-service kiosks, POS (Point-of-Sales) terminals, ATM, price checkers, healthcare and mobile device solutions etc. Numerous features make it easy to integrate the MIR4W in customer's application, you can keep Imager on decoder board with two mounting areas options to mount it on customer's equipment, or have the imager stand alone to connect with decoder board by a PCB board. With a multitude of software configuration through Ideaset utility, you can easily optimize the performance of the MIR4W for your application. MIR4W module is a high performance area imager scanner, provides customers with the most cost-effective solution in the market and perfectly suitable and definitely the best choice for any OEM and built-in application.

  • Good decoding performance, e.g. good reading of QR code in 30% damage or even one finder pattern is missing
  • Omni-directional scan pattern, no need to align bar code and scanner, ensuring user comfort and protecting worker productivity.
  • Easily integrated with various OEM application while 1D and 2D barcode scanning.
  • Focused red-coloured bar-shape aimer for accurate aiming and first time barcode capture.
  • Various mounting options to be flexibly integrated with your products
  • With a multitude of software configuration options, you can easily optimize your application
  • 1D Codes
  • 2D Codes
  • GS1
  • MIR4W

    MIR4W
  • Compare to

Tech Specs

Output Media

Resolution
1280 (H) x 800 (V) pixels
- 320 x 240 pixels (16M colors) - - - - - - - - - - - - - - - - - - - - - - - - - 480 x 272 pixels (65,535 colours) - - - - 640 x 480 pixels (65K colors) - - - - - 1280x800 pixels or 1920x1200 pixels - - - - - - - - - - -

Environmental

Ambient light
Works in any lighting conditions from 0 to 100,000 lux
- - Up to 100,000 Lux - - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. - - - - - - - 0 lux up to 3,000 lux. - - Up to 100,000 Lux - - - - - - - 0 to 3000 lux, avoid direct sunlight - - Up to 100,000 Lux - - - - Up to 100,000 Lux - - - Up to 1,500 Lux (direct sunlight) up to 100,000 Lux - - Up to 1,500 Lux (direct sunlight) - - Up to 1,500 Lux (direct sunlight) - - - - -

Specifications

Material Dimension(WxDxH) Light Source Filed of View Scan Rate Pitch Skew Roll Indicators Supply Voltage Operating Temp. Storage Temp. Relative Humidity
Polycarbonate Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D White light LED Horizontal -55°, Vertical -35° 60 images per second ±60° (from front to back) ±60° (from plane parallel to symbol (side-to-side)) 360° Good read beep DC+5V±5% 0 °C to 50 °C -20 °C to 70 °C 5% to 95% (Non-condensing)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69x56x27.7mm - - - - - - - - - 25x20x11.5mm - - - - 69x56x27.7mm - 25x20x11.5mm - - - - - - - - 64.6x59.2x30mm - - - - 64.6x59.2x30mm - - - - - - - - - - - - - - - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - 632±5nm Red LED - - White light LED - - - - - - 632±5nm Red LED - - - - 625±5nm Red LED RED LED/ IR 632±5nm Red LED - - - - - - - - 632±5nm Red LED - - - - 625±5nm Red LED - - - 660nm Red LED - - - 660nm Red LED - - 660nm Red LED - - - - - - - - - - Horizontal – 55°, Vertical – 35° - - - - - - Horizontal: 45° - - - - - - Horizontal: 45° - - - - - - - - - - - - - 1D: 4mil/0.1mm; 2D: 8mil/0.2mm - - - - - - - - - - - - - - - - - - Smart detection, up to 500 scans 100-1000mm/sec - 60 fps (at full resolution) - - - - - - Smart detection, up to 500 scans - - - - 60 images 100-1000mm/sec 100 scans ±10% - - - - - - - - Smart detection, up to 500 scans 100-1000mm/sec - - - 60 images 100-1000mm/sec - - 50-500mm/sec - - - 50-500mm/sec - - - - - - - Min frame rate > 8fps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Beeper - - Beeper - - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - Beeper - - - - - - - - Beeper and LED - - - - Beeper and LED - - - - - - - - - - - - - - - - - - - - - DC+5V±5% - - - - - - - - - - - - - - - - - - - DC 12V - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20°C ~ 60°C - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20% to 95% (Non-condensing) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Life Time

MTBF(Calculated)
50,000 hours
- - - - - 50,000 hours - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Based on 200 full 10-print flats enrollments per day, MTBF is 22.2 years.

Temp. Test

High Temp. Low Temp.
60 °C -20 °C
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Weight

Body weight
Approx. 0.67 oz (19.2g)
- - - - - Approx. 3 oz (85g) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1.2 KG - - 725 grams / 1.6 lbs (not including cable)

Electrical Characteristics

Interface Current Draw Stand by (Typ.) Operation (Typ.)
RS232, USB (HID, Virtual COM) ±10% 40 mA 380 mA
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - USB or RS-232 wired cable - - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - a USB or RS-232 wired cable to a host - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - - - - - - - - - - USB 2.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40mA 225mA - - - - - - - 230mA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 380mA 465mA - - - - - - - 490mA - - - - - - - - - - 600 mA operating - - - - - - - - - - - - - - - - - - - - - - - -
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-FS/FI300-RS232

    • Cable-CHK-FS/FI300-RS232
    • P/N0116-0800031
    • RemarkRS232 interface cable for Fixed mount FS / FI 300 RS232 black DB9+DC
    • ColorBlack
  3. Cable-CHK-FS310-USB

    • Cable-CHK-FS310-USB
    • P/N0114-A205121
    • RemarkUSB Interface cable for FS310 USB A Type + Molex + MOLEX P1.25 11P L=1500mm Straight Cable Black
    • ColorBlack
