Features

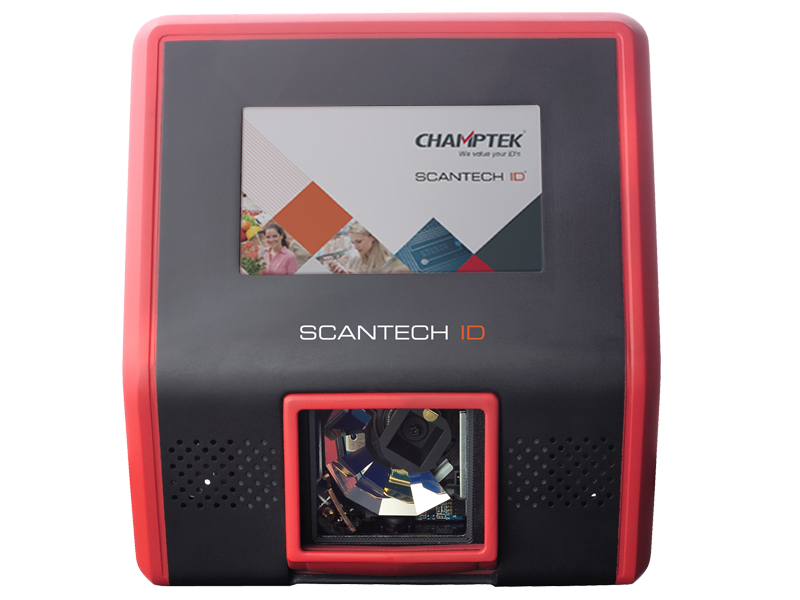

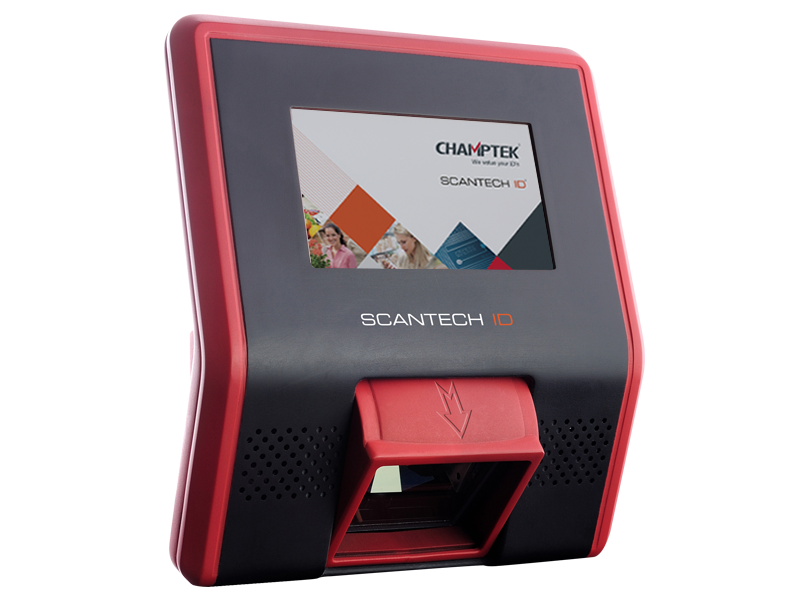

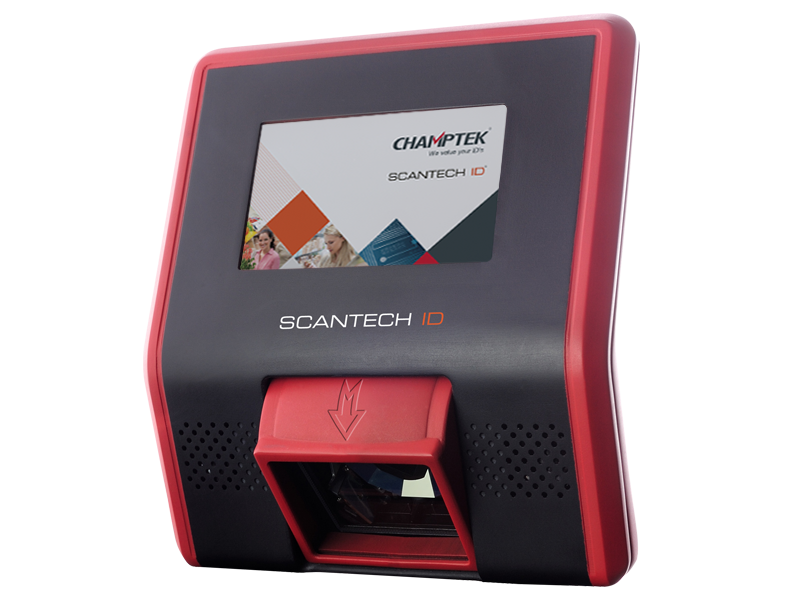

SK-40 is a color-screen Price Verifier. With 4.3 inch color display and price checker functionality, it provides customers who prefer a color display and easy access to the information. SK-40 will provide the price verifying functionality for customer self-service. With the color screen, the SK-40 also provides”Vivid broadcasting” (optional by project base) function with the ability to play multi-media formats (including picture and video) which are applied in Stores for promotion and advertisements. Furthermore, the SK-40 supported remote web configuration management; it will be convenient for system control management, who can monitor and manage all SK-40's deployed store-wide from a central control room. The SK-40 Rotatable scanner window design provides flexibility to adjust the scanner different installation altitude barcode scan and many more optional feature can be select, for example wireless networking (IEEE 802.11 b/g/n 2.4GHz ) Power Over Ethernet and Exit-Gate control function.

  • SK-40 color screen price verifier (none touch screen)
  • Multimedia support with High quality speakers
  • Compact dimension for easy to deploy virtually anywhere in the store
  • Easy to deploy and map out digital promotion image/video media (Optional by project base)
  • Rotatable scanner window for installation.
  • Comprehensive networking options: IEEE 802.11 b/g/n 2.4GHz
  • Browser display technology for user friendly access to remotely configure, diagnose, monitor and troubleshoot devices
  • Interface: WLAN (optional for Linux OS) / Ethernet / POE (Power Over Ethernet)
  • Others: NFC / Exit-Gate control function support
  • SK-40

    SK-40
  • Compare to

Tech Specs

System Architecture

Processor Internal Storage Memory RAM Operating Platform Power Supply
ARM Dual-Core 8GB eMMC Flash 1GB Linux 3.4 / Android 4.4 193 x 176 x 85mm
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ARM Dual-Core - - - - - ARM Dual-core / Quad-core CPU - - - - - - - MT8788(Octa Core), 2.0GHz x4 + 1.5GHz x4, Separated GPU (Mali-G72) - - - - Internal:8GB; external: USB flash disk (not included) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8GB eMMC Flash - - - - - 8G eMMC / 32G eMMC Flash - - - - - - - - - - - - 512MB - - - - - - - - - - 8MB (over 100,000 scans of 50 bytes barcode) - - - - 8MB (over 100,000 scans of 50 bytes barcode) - - - - - - - - - - - - - - 1GB - - - - - 1GB or 2GB LPDDR3 - - - - - - - - - - 512MB or higher - Standard Linux (Kernel > 3.0) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Linux 3.4 / Android 4.4 - - - - - Linux 3.4 , Android 6.0 or Android 9.0 - - - - - - - Android 9.0 OS - - OS Support: Windows 7, 8,10, 11 /Linux 2.6 or later/Android 4.0 or later - DC 5V/2.0A power adapter or PoE - - - 81 x 61 x 192mm - DC+5V±5% - - - - 90x41x23.4mm - - - - 90x41x23.4mm - - - - - - - - DC 12V - - - - - 193 x 176 x 85mm - - - - - DC 12V/2A 24W Power Adaptor/Power over Ethernet (PoE) IEEE 802.3af (optional)/Power over Ethernet (PoE+) IEEE 802.3at (optional) - - - - - - - AC Adapter 57W (19V / 3A) - - -

Output Media

Image Format Audio Format Video Format Display Size Brightness Resolution Audio Ports Speakers Touch Screen Bluetooth Audio Headphone
PNG, JPEG, GIF, BMP WAV, WMA, MP3 MPEG-4, H.264 4.3” diagonal 350 nits 480 x 272 pixels (65,535 colours) 16-bit PCM 44.1 KHz Loudspeaker (2Watt) x 2 Optional N/A 3.5 mm jack
- PNG, JPEG, GIF, BMP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - PNG, JPEG, GIF, BMP - - - - - PNG, JPEG, GIF, BMP - - - - - - - - - - - - WAV - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - WAV, WMA, MP3 - - - - - H.264, MKV, TS, FLV, AVI, VOB, MPG, ASF, RM, MOV, 3GP, MP4, WMV - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - MPEG-4, H.264 - - - - - WAV, WMA, MP3 - - - - - - - - - - - - 3.5" (diagonal) - - - 2.4-inch LCD color screen with 240*320 resolution - - - - - - - - - - - - - - - - - - - - - - - - - - 5.7” diagonal - - - - - 10.1" TFT LCD display - - - - - - - - - - - - 450 nits - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 400 nits - - - - - 450 nits - - - - - - - - - - - - 320 x 240 pixels (16M colors) - - 1280 (H) x 800 (V) pixels - - - - - - - - - - - - - - - - - - - - - - - - - - - 640 x 480 pixels (65K colors) - - - - - 1280x800 pixels or 1920x1200 pixels - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16-bit PCM 44.1 KHz - - - - - - - - - - - - - - - - - - Loudspeaker x 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Loudspeaker (2Watt) x 2 - - - - - 3Watt x 1 or 3Watt x 2 (Stereo) - - - - - - - 2 integrated speakers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Optional - - - - - Capacitive type - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - N/A - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3.5 mm jack - - - - - - - - - - - - - - - - -

Environmental

Operating temperature Storage temperature Humidity
0° ~ 40°C (32° ~ 104°F) -20° ~ 60°C (-4° ~ 140°F 5% ~ 95% RH (non-condensing)
- - - - - -10° ~ 55°C 0 °C to 50 °C (32 °F to 122 °F) 0°C to 40°C (32°F to 104°F) - - - - - - - 0°C to 40°C (32°F to 104°F) - - - - - - - - - - 0°C to 40°C (32°F to 104°F) - - - - - 0° ~ 40°C (32° ~ 104°F) - - - - - 0°C to 40°C (32°F to 72°F) - - - - - - - - - - -10°C ~ +55°C / 14°F ~ 131°F - - - - - -20° ~ 70°C -20 °C to 70 °C (-4 °F to 158 °F) -20°C to 60°C (-4°F to 140°F) - - - - - - - -20°C to 60°C (-4°F to 140°F) - - - - - - - - - - -20°C to 60°C (-4°F to 140°F) - - - - - -20° ~ 60°C (-4° ~ 140°F) - - - - - -20°C to 60°C (-4°F to 140°F) - - - - - - - - - - -30°C ~ +60°C / -22°F ~ 140°F - - - - - 5% ~ 95% (non-condensing) - 0 to 95% relative humidity, noncondensing - - - - - - - 0 to 95% relative humidity, noncondensing - - - - - - - - - - 0 to 70% relative humidity, non condensing - - - - - 5% ~ 95% RH (non-condensing) - - - - - up to 95% RH (non-condensing) - - - - - - - - - - 10~95% RH < 40°C / 104°F (Non-condensing)

Data Ports

SD Card Slot USB 2.0 LAN port 10/100 Mb RS232 GPIO
1 2 1 (for Ethernet or PoE) 1 1 (optional)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 - - - - - - - - - - - - - - - - - - 1 (for Ethernet or PoE) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 (for Ethernet or PoE), - - - - - - - - - - - - - - - - - - 1 (RJ11 connector for console) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 (optional) - - - - - - - - - - - - - - - - -

Network Interface

Wired LAN Wireless LAN Encryption protocols
10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) 802.11a/b/g/n 2.4/5 GHz(optional for Linux OS ) WPA, PSK and WPA Enterprise security
- 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) - - - - - 10/100Mb Ethernet 802.3; Power over Ethernet 802.3af (optional) - - - - - - - Physical RJ45 Port - - - - 802.11a/b/g/n/ac, 2.4GHzand 5GHz dual-band - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 802.11a/b/g/n 2.4/5 GHz(optional for Linux OS ) - - - - - 802.11 a/b/g/n/ac 2.4G/5G Dual Band (optional) - - - - - - - Wi-Fi 802.11 a/b/g/n/AC - - - - WPA, WPA-1/2 Personal & Enterprise - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - WPA, PSK and WPA Enterprise security - - - - - WPA, PSK and WPA Enterprise security - - - - - - - - - - -

Data Inputs

Scanner adjustable Scanner Type Optional
Adjustable from 10° to 45° vertical in 5° step lock 1D omni-directional laser or 2D area imager (selectable) NFC Reader (ISO 1443A / ISO 1443B / ISO 15693 / MIFARE Classic / MIFARE Ultralight)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Adjustable from 10° to 45° vertical in 5° step lock - - - - - - - - - - - - - - - - - - 1D omni-directional laser, 1D Linear imager, 2D area imager (selectable) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1D omni-directional laser or 2D area imager (selectable) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - NFC Reader (ISO 1443A / ISO 1443B / ISO 15693 / MIFARE Classic / MIFARE Ultralight) - - - - - - - - - - - - - - - - -

Software and Applications

Price checker, web management tool, remote package upgrade (Linux version only)
- Price check application, web management, remote package upgrade - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Price checker, web management tool, remote package upgrade (Linux version only) - - - - - - - - - - - - - - - - -
Datasheet E-Catalogue Installation Manual Specification
Download Download Download Download

Accessories

  1. Adaptor-12V(Length=2.5m)

    • Adaptor-12V(Length=2.5m)
    • P/N0104-SP00071
    • RemarkSwitch Power Adaptor 90-264V 12V/1.5A DC Plug 90 degree 2.5m (N-4070)
    • Color-
  2. Mount-VESA Mount

    • Mount-VESA Mount
    • P/N0124-VESA011
    • RemarkVESA mounting 75*75 mm
    • Color-
