Features

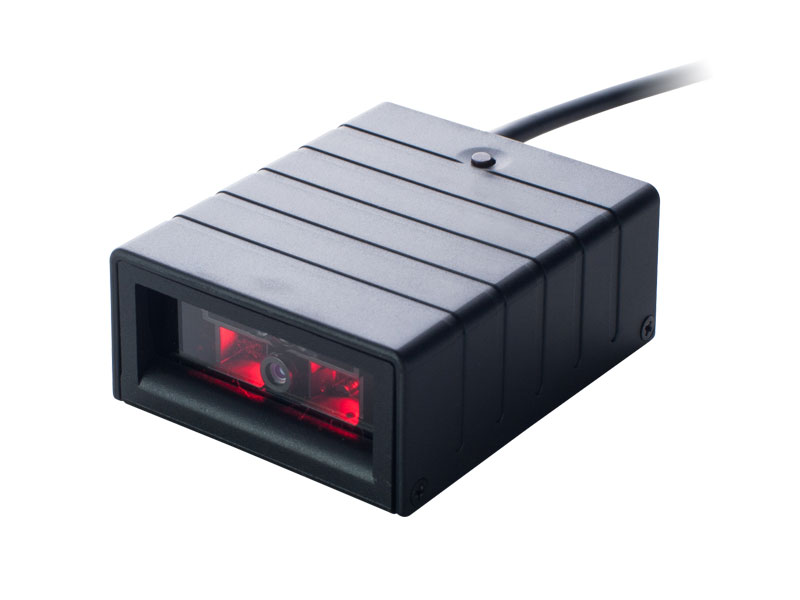

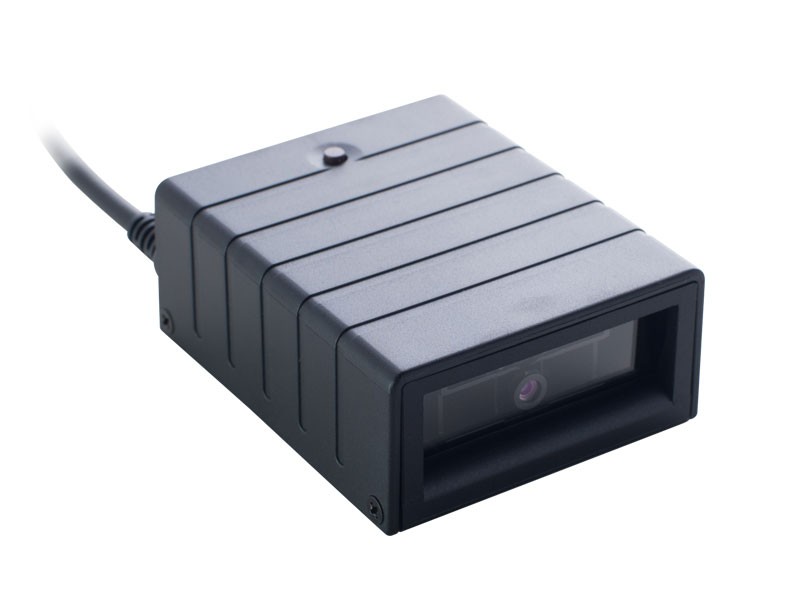

The FI310 is equipped with ultra-compact high performance 2D area imager bar code scanning engine,ideal for OEM applications in devices including POS, medical devices, kiosks, lottery terminals andaccess control devices, a stand option can be ordered to facilitate desktop hand-free reading options. The FI310 supports with up to 500mm reading depth of 1D and 2D bar codes, scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D area mode. It combines decode speed with unmatched motion tolerance to deliver an easy to use scanner with aggressive performance and offers uncompromised performance on current linear barcodes’ applications, it can emulate the operation as a linear imagers with scan rates up to 120 scans per second when decodes linear barcodes,which is more than three times faster than traditional 2-D imagers. Everything has been done to simplify the integration of the FI310, compact size, multiple mountingpossibilities and multiple interfaces selection, such as standard RS232 & USB-HID and USB Virtual COM port. The FI310 is built to match the most demanding scanning requirements, providing consistent scanning performance in total darkness to full sunshine and over a large temperature range.

  • Miniature imager provides comprehensive data captures.
  • Easily integrated with various OEM application while 1D and 2D barcode scanning.
  • Clear aiming frame that make barcode capture easily.
  • Center decoding utility to eliminate the need to position items precisely.
  • Lightweight and compact design is flexible for external application requirement.
  • 1D Codes
  • 2D Codes
  • GS1
  • FI310

    FI310
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux
- - Up to 100,000 Lux - Works in any lighting conditions from 0 to 100,000 lux - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. - - - - - - - 0 lux up to 3,000 lux. - - - - - - - - - 0 to 3000 lux, avoid direct sunlight - - Up to 100,000 Lux - - - - Up to 100,000 Lux - - - Up to 1,500 Lux (direct sunlight) up to 100,000 Lux - - Up to 1,500 Lux (direct sunlight) - - Up to 1,500 Lux (direct sunlight) - - - - -

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio IP Rating
69x56x27.7mm 625±5nm Red LED Up to 500mm@20mil/0.5mm, PCS90%, Code 39 1D: 4mil/0.1mm ;2D: 8mil/0.2mm 60 images Beeper 30% N/A
- - 69x56x27.7mm - Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D - - - - - - - - 25x20x11.5mm - - - - - 25x20x11.5mm - - - - - - - - 64.6x59.2x30mm - - - - 64.6x59.2x30mm - - - - - - - - - - - - - - - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - 632±5nm Red LED - White light LED - White light LED - - - - - - 632±5nm Red LED - - - - RED LED/ IR 632±5nm Red LED - - - - - - - - 632±5nm Red LED - - - - 625±5nm Red LED - - - 660nm Red LED - - - 660nm Red LED - - 660nm Red LED - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - 280mm@20mil/0.5mm, PCS90% - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - - Up to 250mm@20mil/0.5mm, PCS90% - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - Contact Type - - - Contact Type - - Contact Type - - - - - - - 0.1mm/4mil - - - 3mil/0.076mm@PCS90% Code39,8mil/0.2mm@PCS90% QRCode - - - - - - 4mil/0.1mm - - - - 5.9mil/0.15mm 4mil/0.1mm - - - - - - - - 0.1mm/4mil - - - - - - - - 5mil/0.127mm 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode - - 5mil/0.127mm - - - - - - - 500 ppi, Image:1600 x 1500 pixels - - Smart detection, up to 500 scans 100-1000mm/sec 60 images per second - 60 fps (at full resolution) - - - - - - Smart detection, up to 500 scans - - - - 100-1000mm/sec 100 scans ±10% - - - - - - - - Smart detection, up to 500 scans 100-1000mm/sec - - - 60 images 100-1000mm/sec - - 50-500mm/sec - - - 50-500mm/sec - - - - - - - Min frame rate > 8fps - - Beeper - Good read beep - Beeper - - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - LED x 1, Beeper x 1, Vibrator x1 - Beeper - - - - - - - - Beeper and LED - - - - Beeper and LED - - - - - - - - - - - - - - - - - - 30% - - - 30%@5mil/0.127mm - - - - - - 25% - - - - - 25% - - - - - - - - 30% - - - - 30% - - - - - - - - - - - - - - - - - - N/A - - - - - - - - - IP54 - - - - IP54 - - - - - - - - - - IP65 - - - - IP65 - - - - - - - - - - - - - - - -

Electrical Characteristics

Interface Power
RS-232, USB (HID, Virtual COM) DC 5V
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable - - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - a USB or RS-232 wired cable to a host - - TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - - - - - - - - - - USB 2.0 - - DC 5V - - - - - - - - - - DC 5V - - - - - DC 5V - - - - - - - - DC 5V - - - - DC 5V - - - - - - - - - - - - - - - USB Host, Voltage Level: 4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA
Configuration Default Card Configuration Guide Datasheet E-Catalogue Specification
Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-FI310-USB

    • Cable-CHK-FI310-USB
    • P/N0114-FI50001
    • RemarkUSB Interface cable for FI310 USB A Type + Molex P1.25 11P straight cable L=1500mm black
    • ColorBlack
  3. Cable-CHK-FS/FI300-RS232

    • Cable-CHK-FS/FI300-RS232
    • P/N0116-0800031
    • RemarkRS232 interface cable for Fixed mount FS / FI 300 RS232 black DB9+DC
    • ColorBlack
