Features

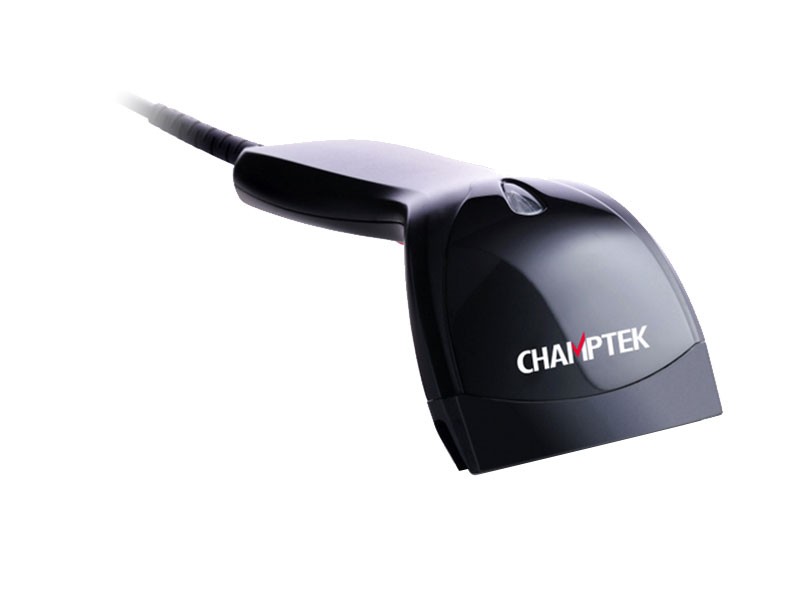

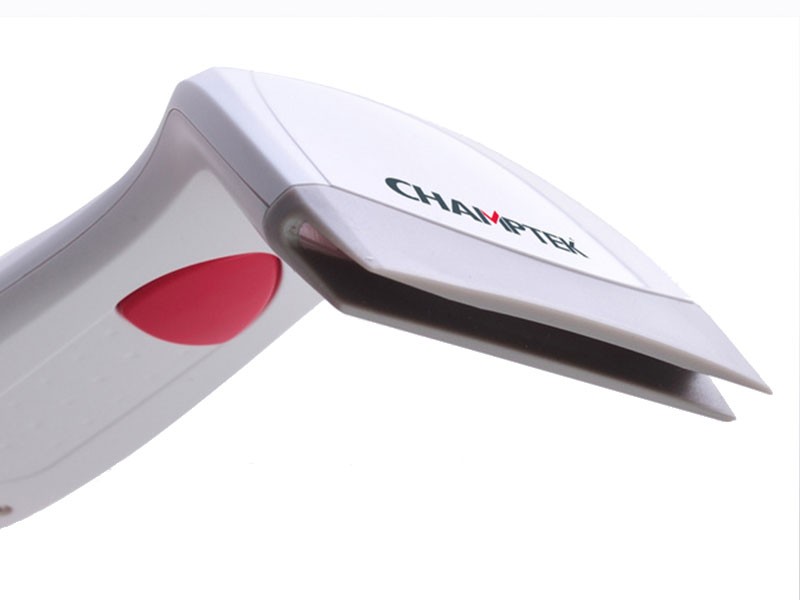

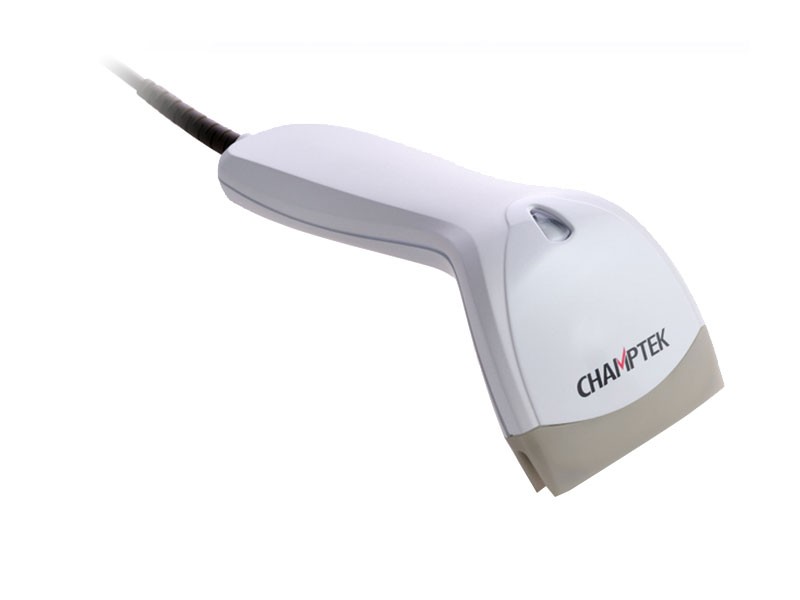

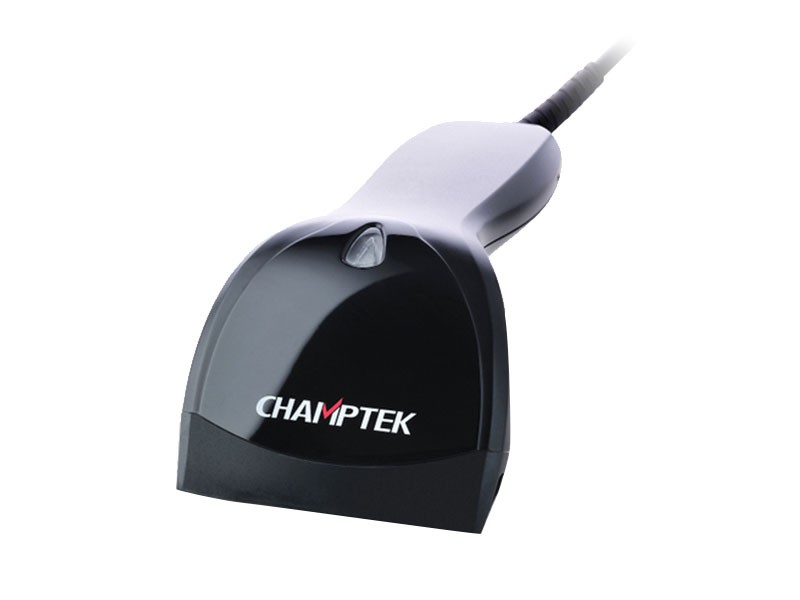

SD700 is a brand new ultra slim Handheld linear imaging contact reader represents for customers who require a cost-effective solution for close contact to middle range bar code reading without sacrificing quality and performance. Aside from the characteristics of “high performance, high sensitivities and high stability” inherited from Champtek previous products, SD700 provides the guarantee of excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. It is designed as ultra slim shape, lightweight and low energy consumption, In performance, it can read 8cm bar code at contact window and up to 10cm reading depth with scan speed up to 200 scans per second, which benefits the user when reading standard or wide bar codes. The SD700 reader is available be used as triggerless readers, by simply disabling the trigger with a configuration setting. SD700 provides a complete all in one multi-interface solution, including RS-232, USB, Keyboard Wedge. It is absolutely the best choice for retailers using POS or regular cash register system.

  • Ultra slim handle, lightweight and low energy consumption
  • Reading 8cm barcode at windows and reading depth up to 10cm
  • Support minimum resolution 3 mil/0.076 mm
  • Multiple Interface options, USB / RS-232 / Keyboard Wedge
  • Supports GS1 DataBar™ linear codes
  • 1D Codes
  • GS1
  • SD700

    SD700
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 20,000 Lux Max
- Up to 10,000 Lux Max - 100,000 Lux Max. Up to 5,000 Lux Max Up to 20,000 Lux Max

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Width of Field
171.3 x 82.8 x 75mm 632±5nm Red LED Contact to 80mm@20mil/0.5mm, PCS90%,Code39 3mil/0.076mm 200 scans±10% Beeper and LED 1.2m 30% 90mm (80mm at window)
- 168 x 65 x 54.9mm 73.50 mm W x 173 mm D x 76.2 mm H 73.5 mm W x 76.2mm H x 173 mm L 166.4 x 78 x 77.8mm 173.5 x 90 x 56.2mm - 632±5nm Red LED Visible Red light 635nm ±5nm LED Visible Red light 635±5nm LED 632±5nm Red LED 632±5nm Red LED - Contact to 200mm@20mil/0.5mm, PCS90%, Code39 Up to 550mm@20mil/0.5mm, PCS90%, Code39 Up to 550mm@20mil/0.5mm, PCS90%, Code39 Contact to 60mm@20mil/0.5mm, PCS90%,Code39 Contact to 50mm@20mil/0.5mm, PCS90%, Code39 - 4mil/0.1mm 4mil/0.1mm@PCS90%, Code39 4mil/0.1mm@PCS90%, Code39 4mil/0.1mm 4mil/0.1mm - 100 scans±10% Horizontal: 45° Smart detection, up to 500 scans per second 120 scans 120 scans - Beeper Beep and LED (Good read Green) Beep and LED (Good read Green) Beeper Beeper and LED - 1.5m 70.86 inches(180cm) drop on concrete surface 59.05 inches(150cm) drop on concrete surface 1.2m 1.2m - 25% 25% 25% 30% 30% - 90mm (40mm at window) - - 80mm (60mm at window) 90mm (80mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-PS/2(Beige)

    • Cable-CHK-PS/2(Beige)
    • P/N0114-2150111
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  3. Cable-CHK-PS/2(Black)

    • Cable-CHK-PS/2(Black)
    • P/N0114-2150121
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  4. Cable-CHK-RS232(Chip, Beige)

    • Cable-CHK-RS232(Chip, Beige)
    • P/N3114-5801131
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  5. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • P/N3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  6. Cable-CHK-SD500/700-PS/2(Black)

    • Cable-CHK-SD500/700-PS/2(Black)
    • P/N0114-1502121
    • RemarkInterface cable Keyboard wedge for SD500/700 MD6M + MD6F + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
  7. Cable-CHK-SD500/700-RS232(Black)

    • Cable-CHK-SD500/700-RS232(Black)
    • P/N3114-1201121
    • RemarkInterface cable RS232 for SD500/700 DB9F+ DC-JACK + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
  8. Cable-CHK-SD500/700-USB(Black)

    • Cable-CHK-SD500/700-USB(Black)
    • P/N0114-SD70001
    • RemarkInterface cable USB for SD500/700, USB+ Molex P1.25 11P Straight Cable Black Color length 1.5m
    • ColorBlack
  9. Cable-CHK-USB(Beige)

    • Cable-CHK-USB(Beige)
    • P/N0114-980A131
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Beige color length 1.5m
    • ColorBeige
  10. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • P/N0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  11. Stand-300 Series(Holder, Beige)

    • Stand-300 Series(Holder, Beige)
    • P/N0121-CH02011
    • RemarkPlastic Holder for SG3xx/LG3xx/IG3xx Series
    • ColorBeige
