Features

The SG15Colour is an entry level, small and attractive price checker, its features the latest technology. Interfacing is either through Wireless RF or hard wired Ethernet. The bright display has, depending on the font set, 3 or 5 lines and can display up to 20 characters per line , and there is a choice of bar code scanners between the entry level single scan line CCD scanner and the high performance 20 scan lines omni–directional laser scanner. With its auto-shuttle-emulation-like smart detection that offers superior decoding on a reading speed up to 500 scans per second and up to 250mm reading depth for the majority of 1D barcodes, the scanner delivers excellent decoding performance and more option with data input in 2D and Laser scanner engine. This flexibility of installation is enhanced by the optional Power–over–Ethernet, three available standard colours also greatly help to fit most interiors.

  • Driven by Linux OS
  • 3.5" colour display
  • Self detection and configuration of scan-engine at start-up

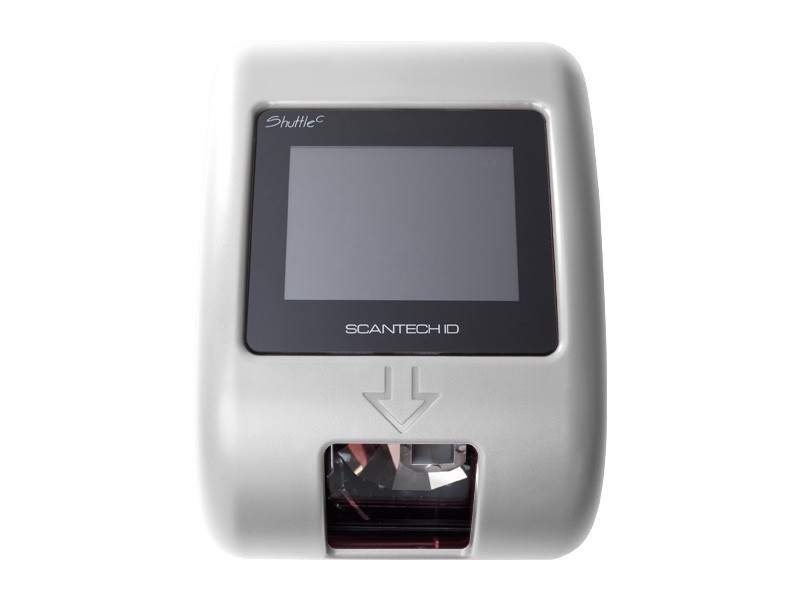

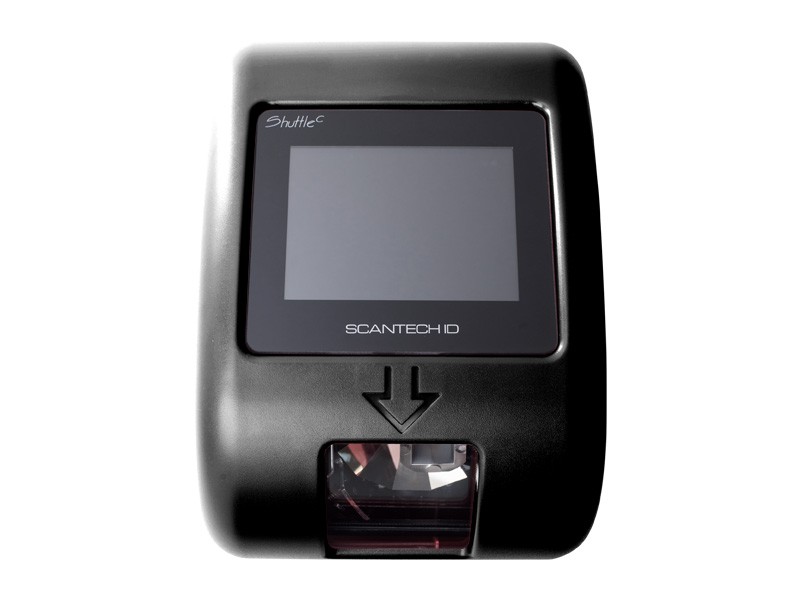

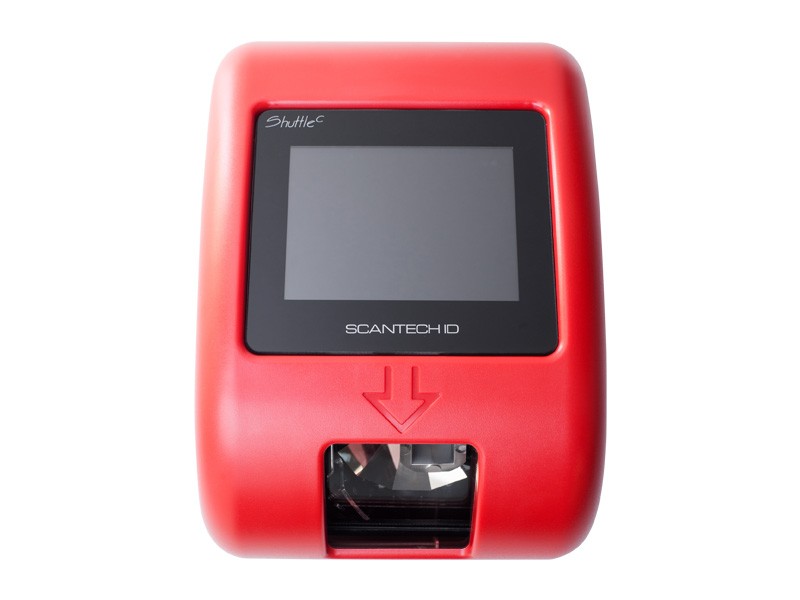

  • Choice of colour:Red,Black and Silver
  • Choice of scanner:Laser Omni/CCD single Line/2D imager
  • Secured access to web interface by password.
  • User friendly Software tools for easy integration.
  • Choice of Interface:Ethernet/WiFi/Power over Ethernet

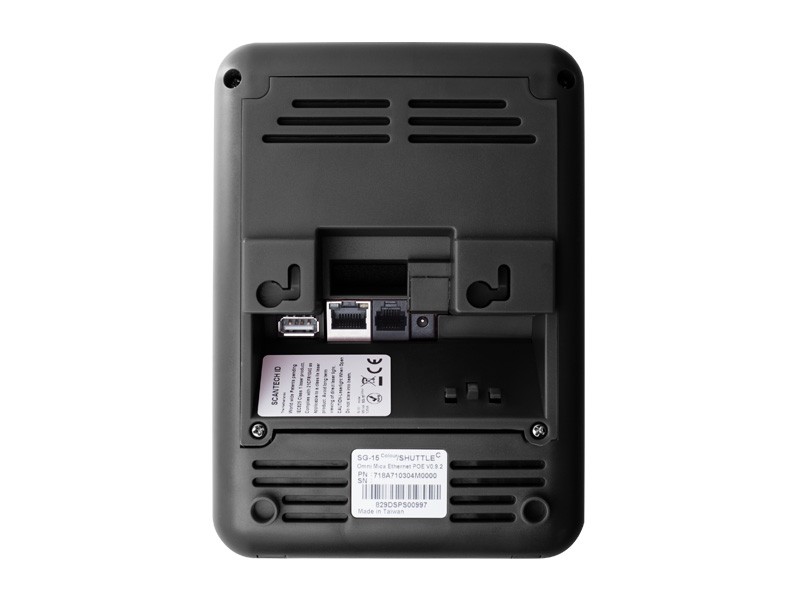

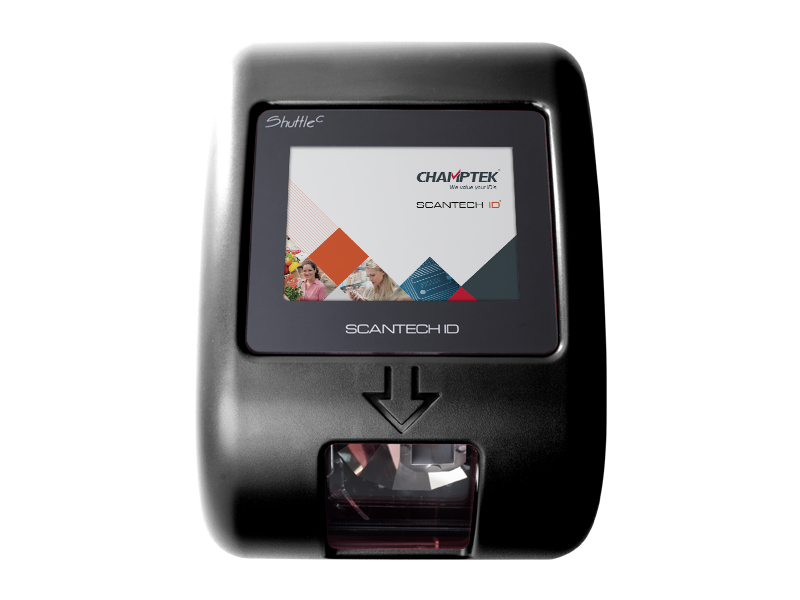

  • SG-15 Colour

    SG-15 Colour
  • Compare to

Tech Specs

System Architecture

Internal Storage Memory RAM Operating Platform Power Supply Dimensions (WxHxL)
Internal:8GB; external: USB flash disk (not included) 512MB Standard Linux (Kernel > 3.0) DC 5V/2.0A power adapter or PoE 131 x 182 x 95 mm
- - - - - - - - - - - - - - - - - - 8GB eMMC Flash - - - - - 8GB eMMC Flash - - - - - 8G eMMC / 32G eMMC Flash - - - - - - - - 8MB (over 100,000 scans of 50 bytes barcode) - - - - - - - - - - - - 8MB (over 100,000 scans of 50 bytes barcode) - - - 1GB - - - - - 1GB - - - - - 1GB or 2GB LPDDR3 - - - 512MB or higher - - - - - - - - - - - - - - - - - - - - - Linux 3.4 / Android 4.4 - - - Android 9.0 OS - Linux 3.4 / Android 4.4 - - - - - Linux 3.4 , Android 6.0 or Android 9.0 - - - OS Support: Windows 7, 8,10, 11 /Linux 2.6 or later/Android 4.0 or later - - - - 90x41x23.4mm - - - 81 x 61 x 192mm - DC+5V±5% - - - - DC 12V - 90x41x23.4mm - - - 193 x 176 x 85mm - - - AC Adapter 57W (19V / 3A) - 193 x 176 x 85mm - - - - - DC 12V/2A 24W Power Adaptor/Power over Ethernet (PoE) IEEE 802.3af (optional)/Power over Ethernet (PoE+) IEEE 802.3at (optional) - - - - - - - - - - - - - 56 mm x 69 mm x 28 mm 11.5 W x 7 H x 18 L cm Device on cradle: 120.0 x 137.0 x 204.4 mm / Device: 120.0 x 83.0 x 196.7 mm / Cradle: 119.9 x 136.9 x 92.1 mm MIR8N reader: 52 W x 66 L x 21.2 H mm MIR8N - 52 W x 66 L x 21.2 H mm - VM600 (WxLxH) : 156.0 x 150.0 x 50.0 mm ,Full assembly with Stand : 500.0 x 900.0 x 1500.0 mm - - - - - - - - - 283.4mm x 192.0mm x 21.9mm [13.72" x 7.56" x 0.86"] - - - - - - - 252 x 238.15 x 71.5 mm - - - - - - -

Output Media

Image Format Audio Format Display Size Brightness Resolution Speakers
PNG, JPEG, GIF, BMP WAV 3.5" (diagonal) 450 nits 320 x 240 pixels (16M colors) Loudspeaker x 1
- - - - - - - - - - - - - - - - - - PNG, JPEG, GIF, BMP - - - - - PNG, JPEG, GIF, BMP - - - - - PNG, JPEG, GIF, BMP - - - - - - - - - - - - - - - - - - - - - - - - - WAV, WMA, MP3 - - - - - WAV, WMA, MP3 - - - - - H.264, MKV, TS, FLV, AVI, VOB, MPG, ASF, RM, MOV, 3GP, MP4, WMV - - - - - - - - - - - - 2.4-inch LCD color screen with 240*320 resolution - - - - - - - - - - - - 4.3” diagonal - - - - - 5.7” diagonal - - - - - 10.1" TFT LCD display - - - - - - - - - - - - - - - - - - - - - - - - - 350 nits - - - - - 400 nits - - - - - 450 nits - - - - - - - - - - - 1280 (H) x 800 (V) pixels - - - - - - - - - - - - - 480 x 272 pixels (65,535 colours) - - - - - 640 x 480 pixels (65K colors) - - - - - 1280x800 pixels or 1920x1200 pixels - - - - - - - - - - - - - - - - - - - - - - - - - Loudspeaker (2Watt) x 2 - - - 2 integrated speakers - Loudspeaker (2Watt) x 2 - - - - - 3Watt x 1 or 3Watt x 2 (Stereo) - - - - - - -

Data Ports

USB 2.0 LAN port 10/100 Mb RS232
1 1 (for Ethernet or PoE) 1 (RJ11 connector for console)
- - - - - - - - - - - - - - - - - - 2 - - - - - 2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 (for Ethernet or PoE) - - - - - 1 (for Ethernet or PoE), - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 - - - - - 1 - - - - - - - - - - - - -

Network Interface

Wired LAN Wireless LAN Encryption protocols
10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) 802.11a/b/g/n/ac, 2.4GHzand 5GHz dual-band WPA, WPA-1/2 Personal & Enterprise
- - - - - - - - - - - - - - - - - - 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) - - - Physical RJ45 Port - 10/100Mb Ethernet (802.3); Power over Ethernet 802.3af (optional) - - - - - 10/100Mb Ethernet 802.3; Power over Ethernet 802.3af (optional) - - - - - - - - - - - - - - - - - - - - - - - - - 802.11a/b/g/n 2.4/5 GHz(optional for Linux OS ) - - - Wi-Fi 802.11 a/b/g/n/AC - 802.11a/b/g/n 2.4/5 GHz(optional for Linux OS ) - - - - - 802.11 a/b/g/n/ac 2.4G/5G Dual Band (optional) - - - - - - - - - - - - - - - - - - - - - - - - - WPA, PSK and WPA Enterprise security - - - - - WPA, PSK and WPA Enterprise security - - - - - WPA, PSK and WPA Enterprise security - - - - - - -

Data Inputs

Scanner Type
1D omni-directional laser, 1D Linear imager, 2D area imager (selectable)
- - - - - - - - - - - - - - - - - - 1D omni-directional laser or 2D area imager (selectable) - - - - - 1D omni-directional laser or 2D area imager (selectable) - - - - - - - - - - - - -

Software and Applications

Price check application, web management, remote package upgrade
- - - - - - - - - - - - - - - - - - Price checker, web management tool, remote package upgrade (Linux version only) - - - - - Price checker, web management tool, remote package upgrade (Linux version only) - - - - - - - - - - - - -
Datasheet E-Catalogue Specification
Download Download Download

Accessories

  1. Adaptor-5V(Small, Length=2.5m)

    • Adaptor-5V(Small, Length=2.5m)
    • P/N0104-SP00091
    • RemarkSwitch Power Adaptor 90-264V 5V/2A 90 degree 2.5m
    • Color-
