AI101-AI105
Exceptional performance, multicore, DPM Traceability in manufacturing.
Features

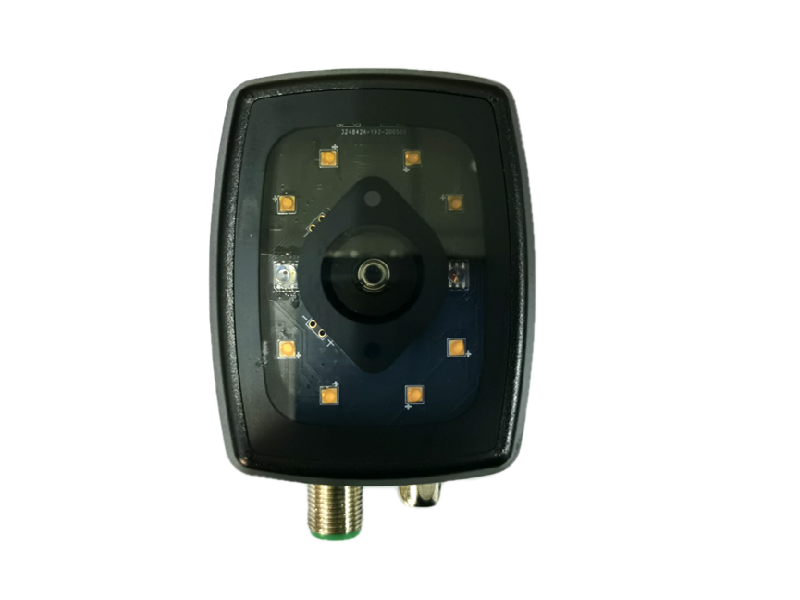

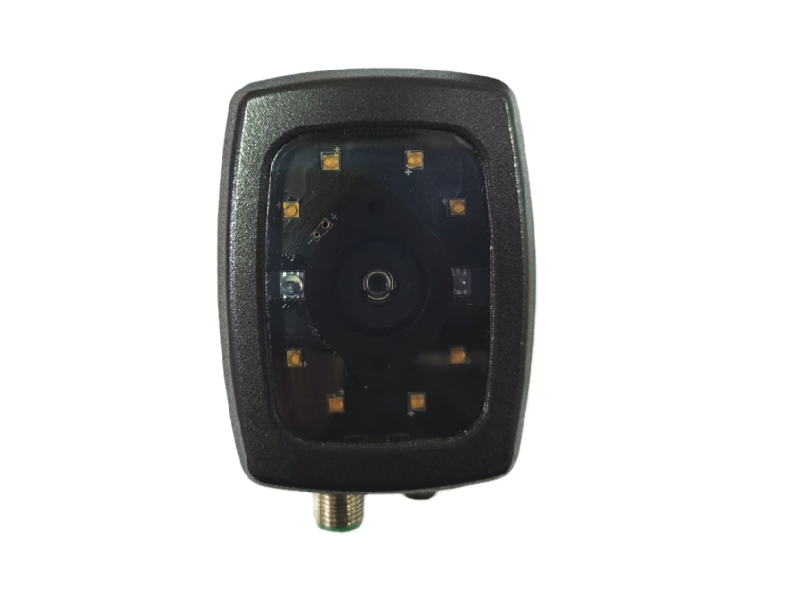

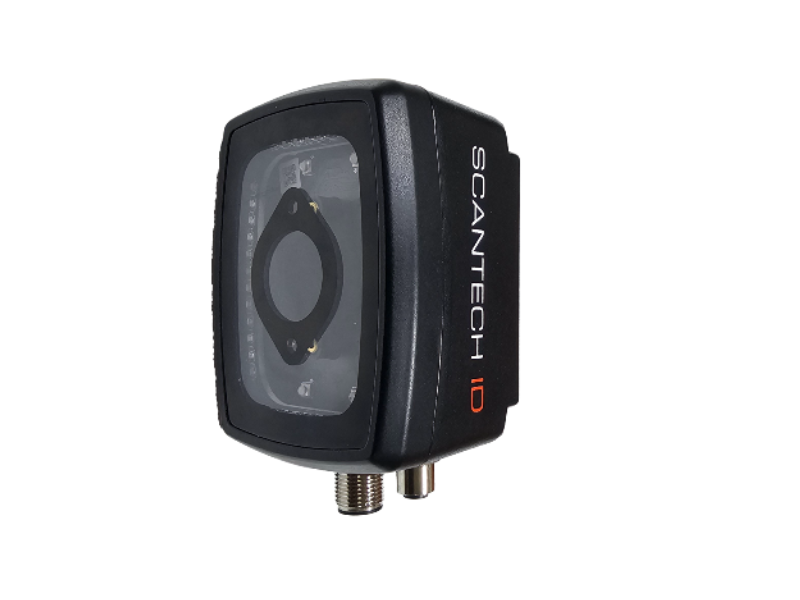

SCANTECH ID Industrial Fixed-Mount Barcode Reader Series, the AI100 equipped a high-quality 1.6-megapixel resolution global shutter image sensor and a quad-core processor, capable of capturing full-frame, high-quality images at speeds up to 60 frames per second. It is particularly suitable for reading multiple barcodes or ultra-small barcodes within a certain range in dynamic scenarios. It integrates a liquid lens with patented technology, allowing for automatic focusing and high-speed code reading within a working range of 35mm-600mm. The professional dual-wavelength red and blue LED light source design provides excellent performance for reading DPM (Direct Part Marking) codes. Its unique optical design achieves high-resolution, deep depth-of-field, and highly uniform imaging. It is also equipped with multiple lenses, enabling the reading of 2D codes as small as 0.5x0.5mm. The global shutter technology allows for reading in high-speed motion states. Its excellent code reading capability can easily solve problems faced in electronics manufacturing and traceability industries, making it suitable for applications in electronic assembly, new energy, LCD screens, pharmaceutical traceability, and other industries.
- Compact size
- The quad-core processor can analyze 4 images at the same time
- High-speed liquid lens autofocus design ( Improve hardware installation efficiency by 30% , No need to adjust product model when changing inspection stations)
- Superior performance in decoding DPM codes
- Simultaneous reading of multiple codes
- Optional OCR , DM code level function and polarizing filter
- IP65 sealing protection
- Multiple status indicators for daily status observation (Power supply indication, Network diagnosis , Output status and Learning status)
- The light sources in 8 areas can be individually controlled to be applied to a variety of code reading scenarios
- Flexible and easy-to-use software, 3 steps to complete setting, support various configuration methods
- 1D Codes
- 2D Codes
- GS1
-
