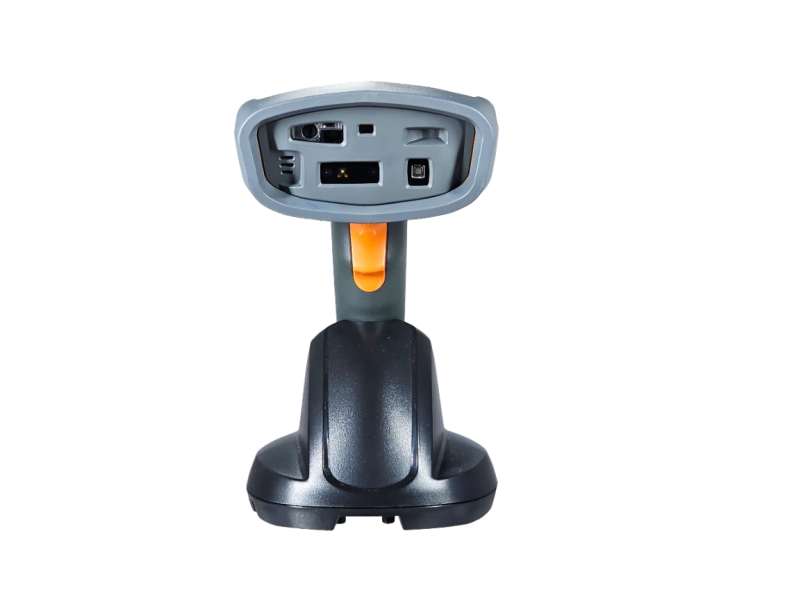

VM200BT

Wireless Hand Held Volume Measurement Reader

VM200BT
VM200BT
VM200BT
VM200BT
VM200BT
VM200BT
  • VM200BT
  • VM200BT
  • VM200BT
  • VM200BT
  • VM200BT
  • VM200BT

Features

VM200BT is a compact and robust wireless handheld multi-dimensional measuring device, its intuitive reading; unmatched fast performance and optimal price make it the best choice in the market. VM200BT is a easily carry device with its intelligent reading zone detection and smart guiding aimer. It will also alarm continuous beeps with flashing red LED when no object is detected inside the good reading zone which leads customers to perform measurement very intuitively and quickly. Furthermore, with its configurable buttons allow the operation flow to best fit your various multi-dimensional measurement applications effectively. Whether it is a courier and express delivery company, a post office, a shipping station, a retail ship-from-store location, an airport check-in counter, an inbound station of a warehouse, the VM200BT system provides an efficient way to achieve quick measuring and space optimization. This optimally priced dimensioning device provides quick return on investment for applications where the previous alternative was a tape or a ruler measure. Manual tape measurements resulted in lower accuracy, inconsistency and reduced productivity. VM200BT built in both 2D barcode and 3D measurement readers, makes it a compact device to support multiple functions application and save customer’s deployment space. VM200BT is a must-have and best choice for companies looking to measure packages, cartons, and objects to optimize its workload, workflow and space; it increases accuracy, consistency and user productivity in various applications.

  • Easily hand carry
  • No extra ruler and self pre-calibration needed
  • Intelligent reading zone detection and patented smart guiding aimer leads the measuring very quickly
  • Intuitive reading and unmatched fact performance
  • Hybrid functions reader: 3D volume measurement and 2D Barcode reader in a device
  • Innovative power charge by magnetic connector
  • Data output : W-H-L and sum dimension values, volume and dimensional weight or barcode data
  • Measurement time: less 1 second
  • Min. 10cm cube, Max. 80cm cube
  • Accuracy: d=2, less than ±2cm deviation
  • Ambient lighting: 0 to 3000 Lux. , avoid direct sunlight
  • Package color: all opaque packaging except black, very glossy and transparent
  • 2 buttons consist in 6 optional operation settings to well fit your application
  • Communication interface to a host: USB or RS-232
  • Tools and command protocol

  • VM200BT

    VM200BT

  • Compare to

Tech Specs

System Architecture

Dimensions (WxHxL) Weight
Device on cradle: 120.0 x 137.0 x 204.4 mm / Device: 120.0 x 83.0 x 196.7 mm / Cradle: 119.9 x 136.9 x 92.1 mm Device on cradle: 550g (19.4oz) / Device: 340g (11.99oz) / Cradle: 210g (7.41oz)
- 131 x 182 x 95 mm - - - - - 56 mm x 69 mm x 28 mm 11.5 W x 7 H x 18 L cm MIR8N reader: 52 W x 66 L x 21.2 H mm MIR8N - 52 W x 66 L x 21.2 H mm - VM600 (WxLxH) : 156.0 x 150.0 x 50.0 mm ,Full assembly with Stand : 500.0 x 900.0 x 1500.0 mm - - - - - - - - - - 283.4mm x 192.0mm x 21.9mm [13.72" x 7.56" x 0.86"] - - - - - - - 252 x 238.15 x 71.5 mm - - - - - - - - - - - - - - - Approx. 270 g (9.52 oz) - - - 640 g (22.575 oz) - - - - - - - - - - 1200g [2.64 lbs] - - - - - - - Approx. 1.25 kg - - - - - - -

Environmental

Operating temperature Storage temperature Humidity Ambient light Sealing Protection
0°C to 40°C (32°F to 104°F) -20°C to 60°C (-4°F to 140°F) 0 to 95% relative humidity, noncondensing 0 lux up to 3,000 lux. IP54
- - - - - - -10° ~ 55°C 0 °C to 50 °C (32 °F to 122 °F) 0°C to 40°C (32°F to 104°F) - - - 0°C to 40°C (32°F to 104°F) - - - - - - 0° ~ 40°C (32° ~ 104°F) - - - - - 0° ~ 40°C (32° ~ 104°F) - - - - - 0°C to 40°C (32°F to 72°F) - - - -10°C ~ +55°C / 14°F ~ 131°F - - - - - - - - - -20° ~ 70°C -20 °C to 70 °C (-4 °F to 158 °F) -20°C to 60°C (-4°F to 140°F) - - - -20°C to 60°C (-4°F to 140°F) - - - - - - -20° ~ 60°C (-4° ~ 140°F - - - - - -20° ~ 60°C (-4° ~ 140°F) - - - - - -20°C to 60°C (-4°F to 140°F) - - - -30°C ~ +60°C / -22°F ~ 140°F - - - - - - - - - 5% ~ 95% (non-condensing) - 0 to 95% relative humidity, noncondensing - - - 0 to 70% relative humidity, non condensing - - - - - - 5% ~ 95% RH (non-condensing) - - - - - 5% ~ 95% RH (non-condensing) - - - - - up to 95% RH (non-condensing) - - - 10~95% RH < 40°C / 104°F (Non-condensing) - - - - - - Up to 100,000 Lux - Works in any lighting conditions from 0 to 100,000 lux - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. - - - 0 to 3000 lux, avoid direct sunlight - - - - - - - Up to 100,000 Lux - - - - - - - - Up to 100,000 Lux - up to 100,000 Lux - Up to 100,000 Lux - - Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) - - - - - - - - IP54 - - - IP54 (with optional sealing cover) - - - - - - - - - - - - - - - - - - - - - - IP65 Sealed bezel to scanning surface - - -

Electrical Characteristics

Interface Stand by (Typ.) Operation (Typ.) Reads per charge Voltage Battery Recharge time
a USB or RS-232 wired cable to a host 230mA 490mA 4,000 times in 5 seconds duration continuous reads or approx. 5 hours operation, recommend to place the device on cradle to do recharging once you are not measuring to extend for more than 8 hours operation Li-Ion 3.7V/2600mA Approx. 5 hours
- - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable 1.5m USB , VCOM or UART 1.5m USB , VCOM or UART - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USB 2.0 - - - - - - - - 40 mA - 40mA 225mA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 380 mA - 380mA 465mA - 380mA - 600 mA operating - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Performance

Field of view Shape Accuracy Measurement time Object size Color Measurement angle Measurement surface Indicator Smart detction Aimer Certification
Horizontal 52°, Vertical 30° Cubic and rectangular package / carton d=2, less than ±2cm deviation Less than 1 second 10 cm / 3.94 inches cube (OIML 20cm cube),80 cm / 31.5 inches cube (OIML 60cm cube) All opaque packaging except black, very glossy or transparent Pitch: 35° ~ 65°, Skew : ± 15° No black, transparent or very shining background Beep and LED (Green, Red and Orange) Alarm when no object is detected inside the good reading zone 650±10nm Red VLD, 60825-1:2014 Class 1 CE, FCC, LVD, VM200- OIML/MID certification
- - - - - - - - Horizontal 52°, Vertical 30° 80°x 57°(W x L) - - Horizontal 74°, Vertical 50° - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Cubic and rectangular package / carton - - - Cubic, cuboid and irregular shapes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - d=2, less than ±2cm deviation - - - d=1, less than ±1cm deviation / irregular d=2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Less than 1 second - - - Less than 1 second - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 cm / 3.94 inches cube (OIML 20cm cube),80 cm / 31.5 inches cube (OIML 60cm cube) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - All opaque packaging except black, very glossy or transparent - - - All opaque packaging , except very glossy and transparent - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Pitch: 35° ~ 65°, Skew : ± 15° - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - No black, transparent or very shining background - - - The background should have a contrasting color for items to be dimensioned. Avoid over polished or glossy surfaces for best performance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Beep and LED (Green, Red and Orange) - - - Beep and LED - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Alarm when no object is detected inside the good reading zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 650±10nm Red VLD, 60825-1:2014 Class 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CE, FCC, LVD, OIML/MID and apply NTEP certification - - - - - - - - - - - - - - - - - - - - - - - - - - MIL-C-675c 4.5010, MIL-STD-810F - - -

Tools and SDK

Configuration tool Data viewer tool SDK
VMSet VMView Communication command protocol
- - - - - - - - VMSet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - VMView - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Communication command protocol SDK Developer Document is available - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Radio Characteristics

Bluetooth Module Frequency Band RF Output Power Transmission Range
Bluetooth V2.1 EDR 2.402GHz~2.480GHz Class 1 (under 20dBm) Up to 80M (262.47FT.) line of sight in open space
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
