Features

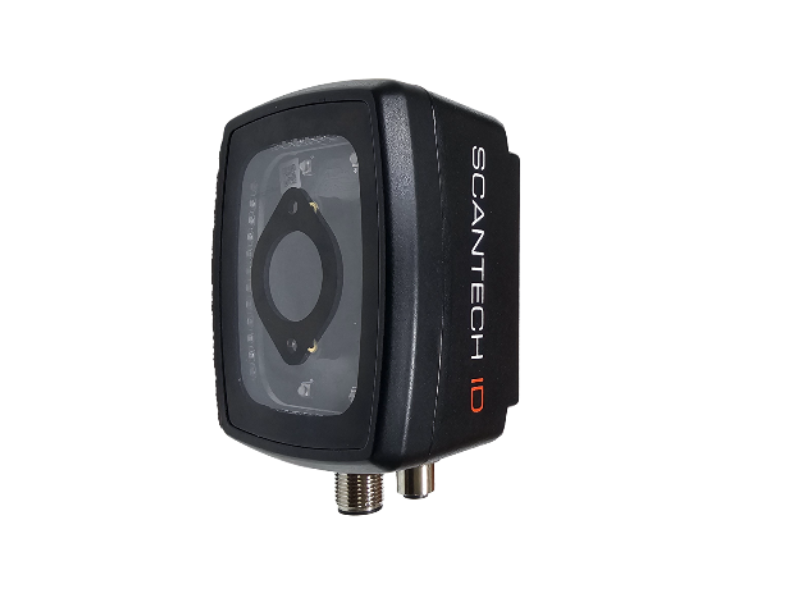

SCANTECH ID AI100 Industrial fixed-mount barcode reader series uses a high-quality 1.6 million pixel resolution global shutter image sensor and quad-core processor, which can capture full-frame high-quality images at a speed of up to 60 frames per second, especially suitable for reading multiple codes or ultra-small codes within the range in dynamic scenes. Its liquid lens integrated with patented technology can automatically focus and read codes at high speed within the working range of 35mm-600mm. The professional red and blue dual-wavelength LED light source design has excellent performance for DPM, Direct Part Marking codes reading. The unique optical design achieves high-resolution, large depth of field, and high uniformity imaging. At the same time, it is equipped with a variety of lenses to achieve the reading of the smallest 0.5x0.5mm QR code. The global shutter technology is used to achieve high-speed motion state reading. Its excellent code reading ability can easily solve the problems faced by the electronic manufacturing and traceability industries, and is suitable for applications in electronic assembly, new energy, LCD screens, drug traceability and other industries. Other models with 2.4M, 5M and 8M pixels are available for selection.

  • Compact size
  • The quad-core processor can analyze 4 images at the same time
  • High-speed liquid lens autofocus design ( Improve hardware installation efficiency by 30% , No need to adjust product model when changing inspection stations)
  • Superior performance in decoding DPM codes
  • Simultaneous reading of multiple codes
  • Optional OCR , DM code level function and polarizing filter
  • IP65 sealing protection
  • Multiple status indicators for daily status observation (Power supply indication, Network diagnosis , Output status and Learning status)

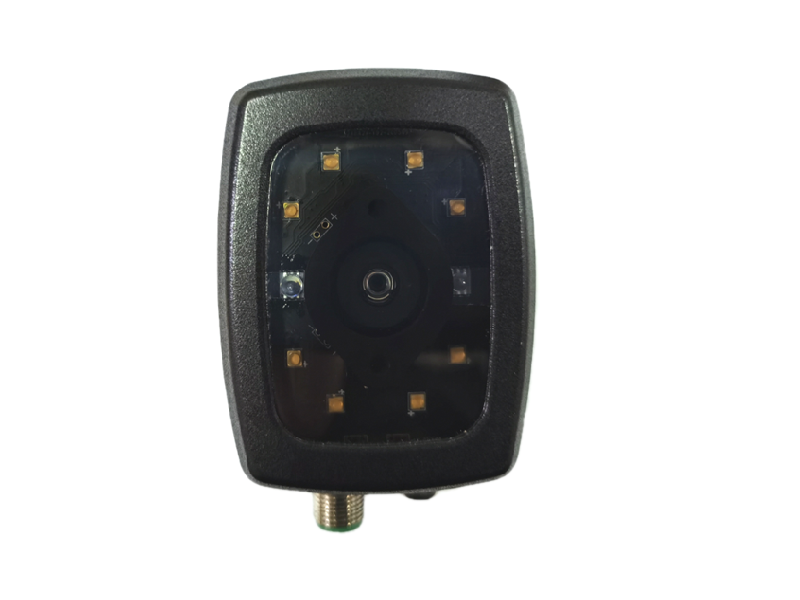

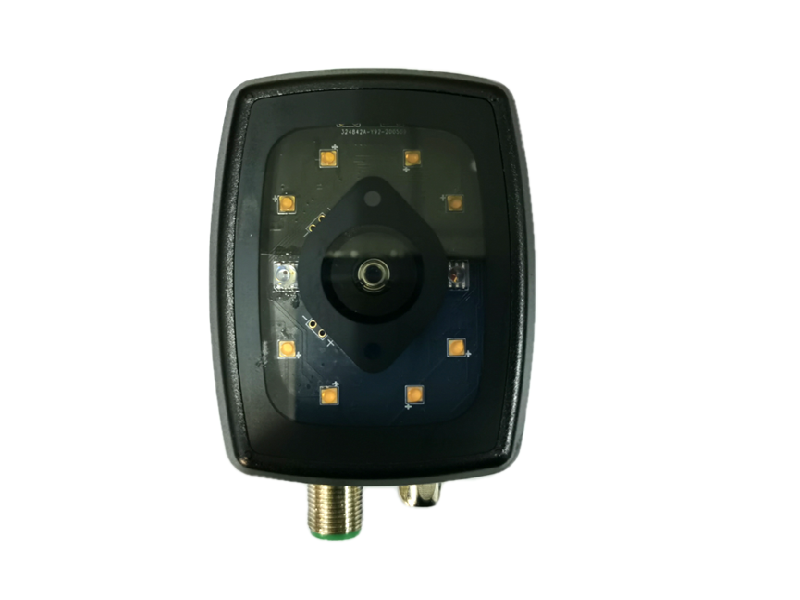

  • The light sources in 8 areas can be individually controlled to be applied to a variety of code reading scenarios
  • Flexible and easy-to-use software, 3 steps to complete setting, support various configuration methods
  • 1D Codes
  • 2D Codes
  • GS1
