Features

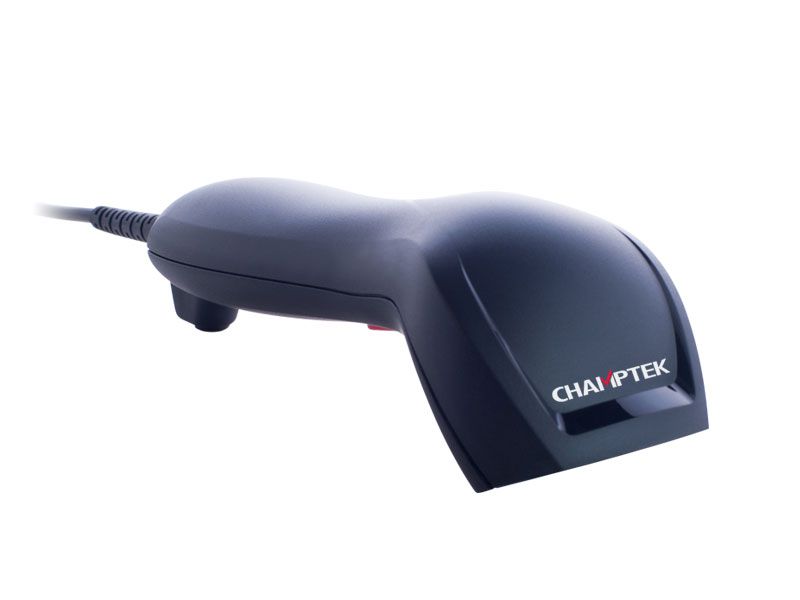

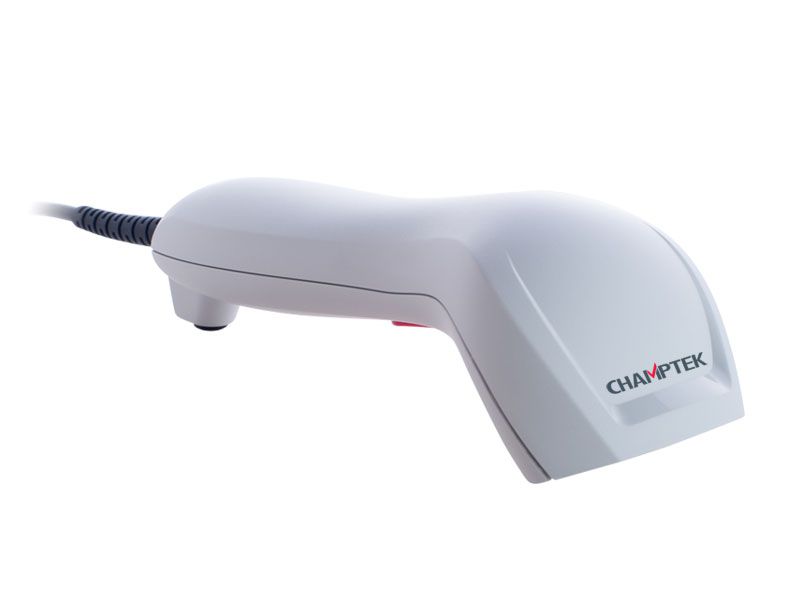

The IG380 area imager barcode scanner brings unmatched performance along with the latest advanced technology to the point-of-sale checkout operations, and it is a reliable bar code reader suitable for a wide range of environments. The IG380’s features and its outstanding price-performance ratio make it the best solution for retail and POS applications. The IG380 provides a 'black' or 'warm gray' color option, emphasizing the curving lines of the new enclosure and supports keyboard wedge, RS232 and USB interface. The powerful built-in decoder reads and discriminates all major 1D, 2D bar codes and GS1 DataBar™ symbologies, including damaged or poorly printed codes, reducing processing time and labor costs, while increasing accuracy. Its barcode programming menu provides extensive configuration options. A stand option can be ordered to facilitate hand-free reading option and by configured to its automatical wake-up reading mode can extend its lifespan. The IG380 provides customers with the most cost-effective solution in the market and is the best choice for any retail environment.

  • Excellent Reading Performance for major 1D and 2D bar codes, e.g. of QR codes, even with 30% damage or one finder pattern missing.
  • The best price-performance ratio solution in the market for retail and POS applications. Support multiple Interface options, USB HID, Virtual COM and RS-232
  • Facilitates both contact and air 16KV Electro-Static discharge
  • A stand option can be ordered to facilitate hand-free reading options
  • A vibration mode when scanning is optionally available.
  • Applicable on Android tablet or smart phone with optional cable.
  • 1D Codes
  • 2D Codes
  • GS1
  • IG380

    IG380
  • Compare to

Tech Specs

Environmental

Ambient light Electro-Static Discharge(ESD)
100,000 Lux Max Both contact and air at up to 16KV
- - 100,000 Lux Max Up to 100,000 Lux Up to 100,000 Lux 100,000 Lux Max. Up to 100,000 Lux Up to 100,000 Lux Max.(sunlight) Up to 5,000 Lux Up to 5,000 Lux Up to 100,000 Lux - - Both contact and air at up to 16KV - - - - - - - -

Specifications

Dimension(WxDxH) Light Source Filed of View Resolution Scan Rate Drop Resistance Print Contrast Ratio
65.01 mm W x 168.01 mm D x 54.92 mm H White light LED Horizontal – 40°, Vertical – 25° 3mil/0.076mm@PCS90% Code39, 10mil/.26mm@PCS90% QRCode 60 fps 59.05 inches (150cm) drop on concrete surface PCS45%@5mil/0.127mm
- 73.50 mm W x 173 mm D x 76.2 mm H 73.50 mm W x 173 mm D x 76.2 mm H 169.2 x 71.1 x 62.6 mm 169.2x71.1x62.6mm 71.13 mm W x 62.61mm H x 169.27 mm L 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 71.13 mm(W) X 62.61 mm(H) X 169.27 mm(L) - Visible Red light 635nm ±5nm LED White light LED 632±5nm Red LED 632±5nm Red LED White light LED 625±5nm Red LED 625±5nm Red LED 650±10nm VLD 650±10nm VLD Visible red light 625 ± 5nm LED - Smart detection, up to 500 scans per second Horizontal – 40°, Vertical – 25° Horizontal: 45° Horizontal: 45° Horizontal – 40°, Vertical – 25° Horizontal: 40°, Vertical: 25° Horizontal: 40°, Vertical: 25° Horizontal: 45° Horizontal: 45° 40° Horizontal, 25° Vertical - 4mil/0.1mm@PCS90%, Code39 3mil/0.076mm@PCS90% Code39, 10mil/.26mm@PCS90% QRCode 4mil/ 0.1mm 4mil/ 0.1mm 3mil/0.076mm@PCS90% Code39, 10mil/.26mm@PCS90% QRCode 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 5mil/0.127mm 5mil/0.127mm 1D: 4mil/0.1mm; 2D: 10mil/0.26mm - Horizontal: 45° 60 fps (at full resolution) Smart detection, up to 500 scans Smart detection, up to 500 scans 60 fps (at full resolution) 1D mode: 120 scans; 2D mode: 60 images 60 images per second 50 scans ±5% 50 scans ±5% 60 images per second - 70.86 inches(180cm) drop on concrete surface 70.86 inches(180cm) drop on concrete surface 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model);1.2m (wireless model) - 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model); 1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) - 25% PCS45%@5mil/0.127mm 25% 25% - 25% 25% 30% 30% PCS45%@5mil/0.127mm

Electrical Characteristics

Interface Power
RS232, USB (HID, Virtual COM) DC 5V
- RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW - DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Stand-380 Series

    • Stand-380 Series
    • P/N7184190202D0000
    • RemarkStand for SD38x/IG38x Series
    • ColorBlack
