Features

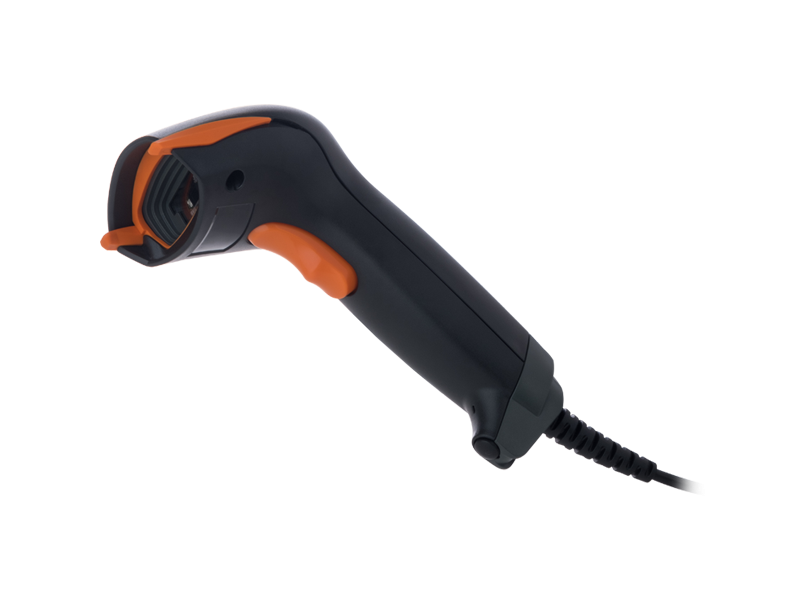

IG820/IG821 is a brand new general purpose gun-type Area Imager Barcode Scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment. IG820/IG821 has most modern design with rugged casing and supports IP42 sealing protection, with its unmatched performance for the majority of 1D /2D bar codes. An optional stand can be ordered to facilitate hand-free reading application. At auto-sense mode, it senses an object approaching and turns on the light to read barcodes. With its Intelligent Activation, it automatically switches over from button trigger mode to auto-sense mode while placing scanner on its stand. In short, IG820/IG821 provides customer with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

  • Support 1D, 2D and GS1 Databar codes.
  • Good reading performance, e.g. good reading of QR code in 30% damage or even one finder pattern is missing.
  • Support automatic sense reading under 0 Lux dark environment.
  • Support multiple interface options, USB HID, Virtual COM and RS-232.
  • Designed as IP42 sealing protection.
  • With Intelligent Activation (Only for IG821), it automatically switches over to automatic-sense read while place on the stand.
  • Both contact and air 16KV Electro-Static discharge.

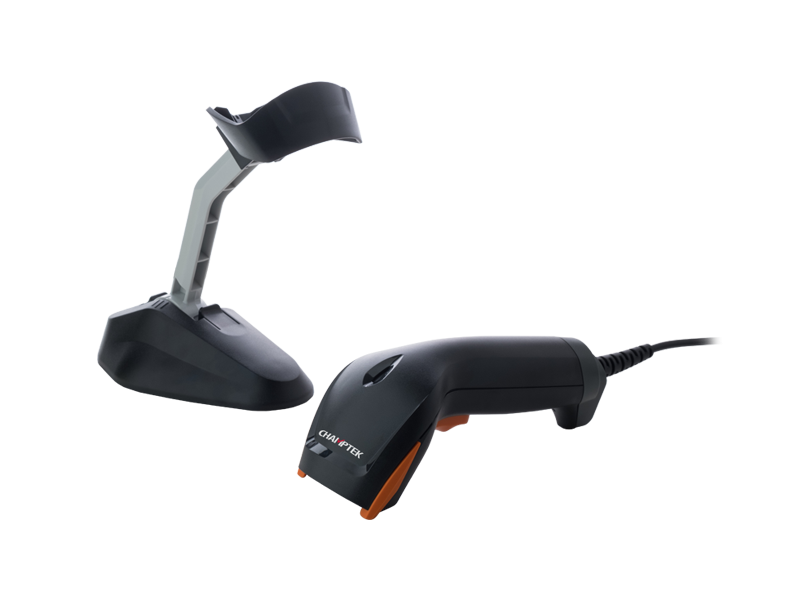

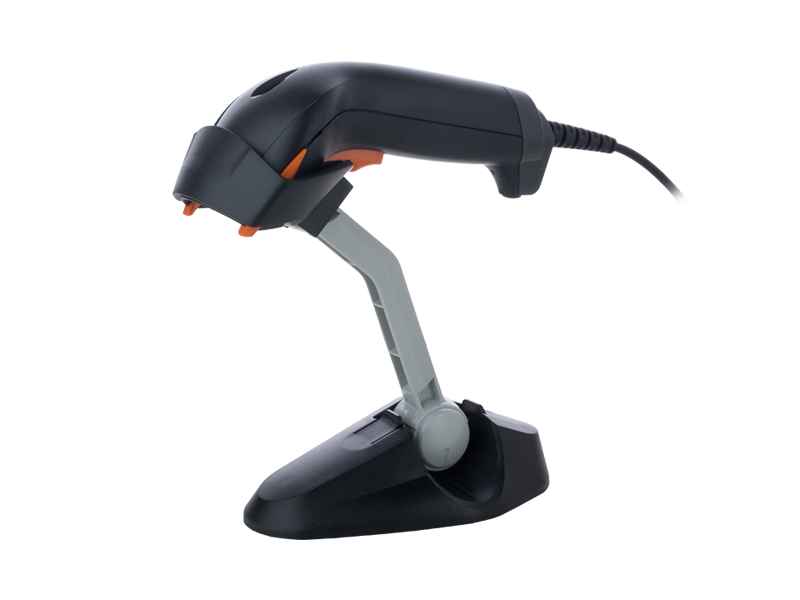

  • A stand option can be ordered to facilitate hand-free reading options.
  • Vibration when scanning. (optional)
  • Applicable on Android tablet or smart phone with optional cable.
  • 1D Codes
  • 2D Codes
  • GS1
  • IG820

    IG820
  • Compare to

Tech Specs

Environmental

Ambient light Electro-Static Discharge(ESD)
100,000 Lux Max Both contact and air at up to 16KV
- 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. - 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight) Up to 100,000 Lux Up to 100,000 Lux Up to 100,000 Lux Up to 100,000 Lux Max.(sunlight) Up to 5,000 Lux Up to 5,000 Lux - Both contact and air at up to 16KV - - - - - - - - - - - - - -

Specifications

Dimension(WxDxH) Light Source Filed of View Resolution Scan Rate Drop Resistance Print Contrast Ratio Sealing
73.50 mm W x 173 mm D x 76.2 mm H White light LED Horizontal – 55°, Vertical – 35° 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 60 fps (at full resolution) 70.86 inches(180cm) drop on concrete surface PCS25% IP42 water and dust protection
- 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm(Scanner) L123 x W88.5 x H70 (Cradle) L167x W70 x H88mm - 169.2 x 71.1 x 62.6 mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm - White light LED White light LED Visible Red light 635±5nm LED Visible Red light 635nm ±5nm LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer 632±5nm Red LED 632±5nm Red LED 625±5nm Red LED 625±5nm Red LED 650±10nm VLD 650±10nm VLD - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal: 45° Smart detection, up to 500 scans per second Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° Horizontal: 45° Horizontal: 45° Horizontal: 40°, Vertical: 25° Horizontal: 40°, Vertical: 25° Horizontal: 45° Horizontal: 45° - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 4mil/0.1mm@PCS90%, Code39 4mil/0.1mm@PCS90%, Code39 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 4mil/ 0.1mm 4mil/ 0.1mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 5mil/0.127mm 5mil/0.127mm - 60 fps 60 fps (at full resolution) Smart detection, up to 500 scans per second Horizontal: 45° - - Motion toerlance 25cm per second - Motion tolerance: 35cm per second Smart detection, up to 500 scans Smart detection, up to 500 scans 1D mode: 120 scans; 2D mode: 60 images 60 images per second 50 scans ±5% 50 scans ±5% - 59.05 inches (150cm) drop on concrete surface - 59.05 inches(150cm) drop on concrete surface 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) 47.2 inches(120cm) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model);1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model); 1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) - PCS30%@5mil/0.127mm - 25% 25% PCS25% >=25% >=25% >=PCS15% ≥15% 25% 25% 25% 25% 30% 30% - IP41 water and dust protection IP42 water and dust protection IP42 water and dust protection - - - - - - - - - - - -

Electrical Characteristics

Interface Power
RS232, USB (HID, Virtual COM) DC 5V
- RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) - USB or RS-232, cable is non-replaceable - Support USB HID, Virtual COM and RS-232 interfaces. - RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW - DC 5V DC 5V DC 5V DC 5V - - - - - DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • P/N3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  3. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • P/N0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  4. Stand-800 Series(Auto Switch)

    • Stand-800 Series(Auto Switch)
    • P/N7184S10200D0000
    • RemarkStand for SG8xx/IG8xx Series (with Auto Switch)
    • ColorBlack
  5. Stand-800 Series(No Auto Switch)

    • Stand-800 Series(No Auto Switch)
    • P/N7184S20202D0000
    • RemarkStand for SG8xx/IG8xx Series (without Auto Switch)
    • ColorBlack
