SG800BT

Linear Imager Barcode Scanner

SG800BT
SG800BT
SG800BT
SG800BT
  • SG800BT
  • SG800BT
  • SG800BT
  • SG800BT

Features

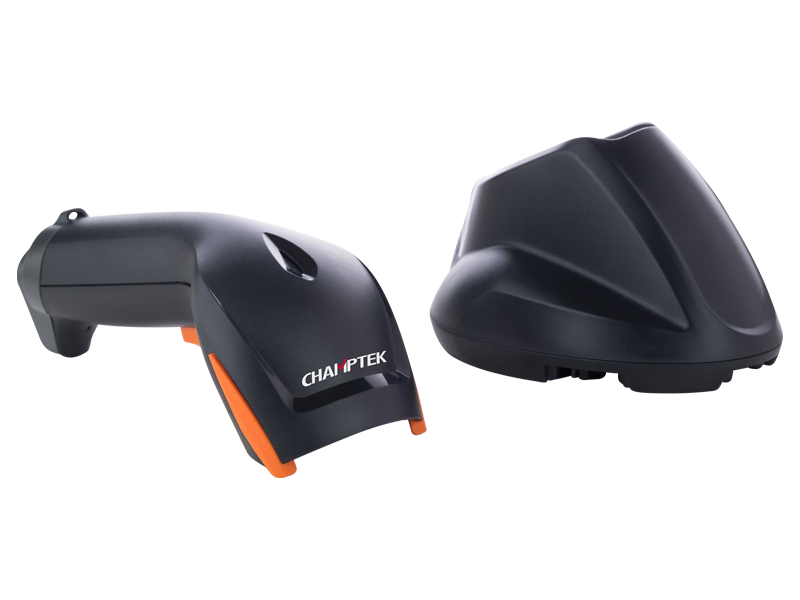

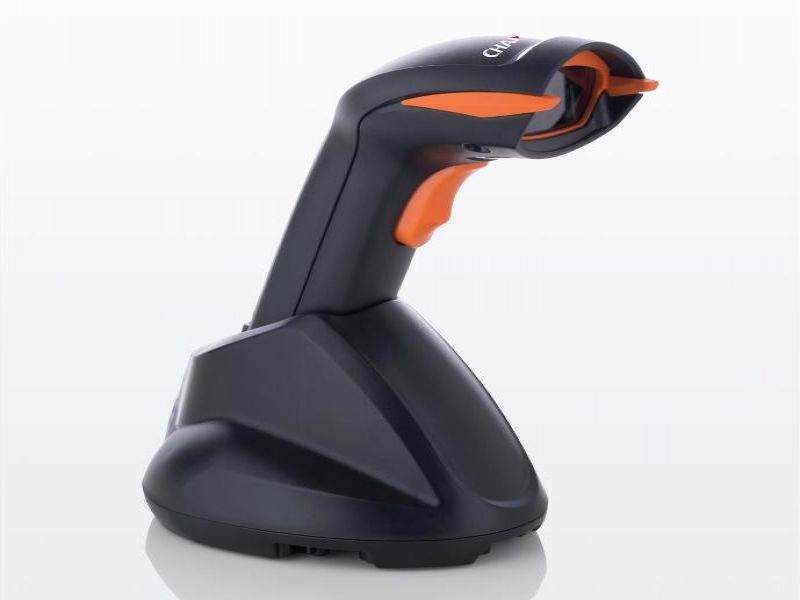

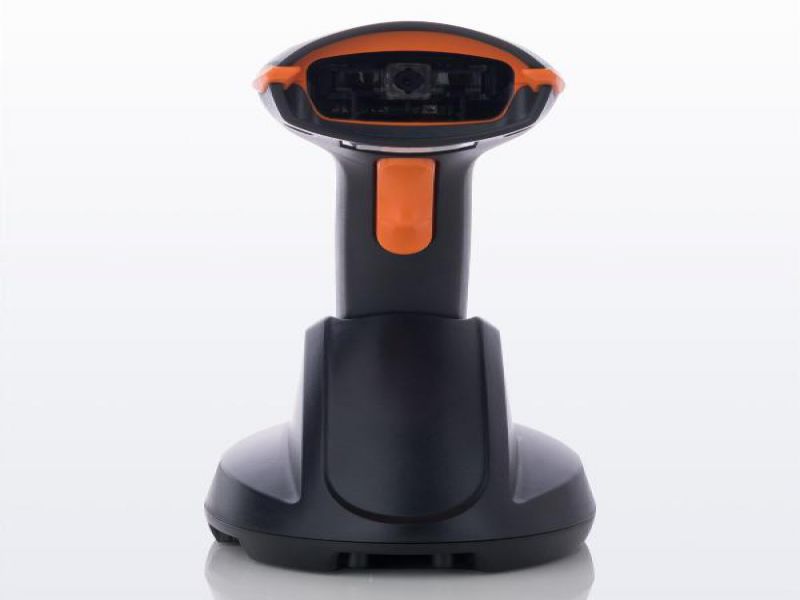

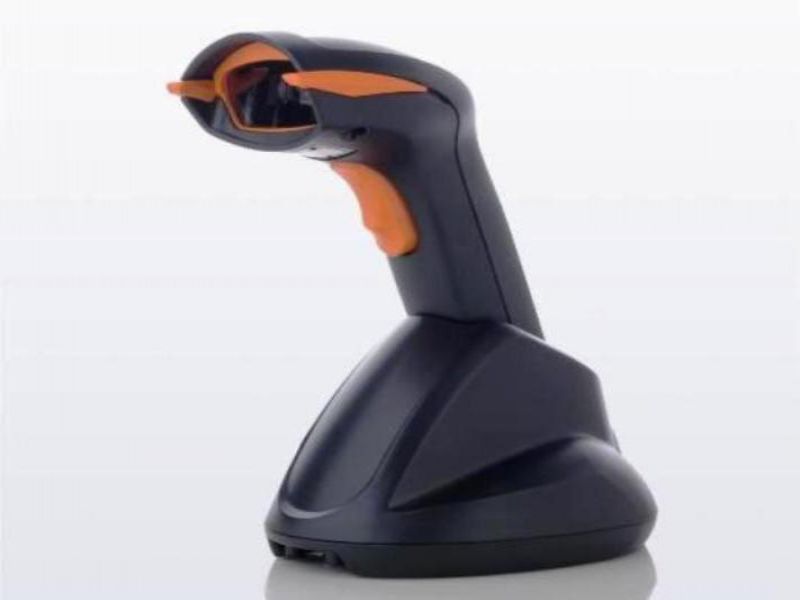

SG800/SG801 (wired) / SG800BT(wireless) is a brand new gun-type area imager bar code scanner, has most modern design with rugged casing and supports IP42 sealing protection, which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate to user environment. An optional stand can be ordered to facilitate hand-free reading application. SG800BT has most modern design with its auto-shuttle-emulation alike smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. SG800BT’s out of range or batch transmission mode with memory capacity stores up to 30,000 inputs of EAN13 barcodes. Wireless scanner and cradle equipped Class1 Bluetooth V2.1 EDR technology with transmission range up to 80m/262.47 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth compatible mobile equipments. With its Intelligent Activation, it automatically switches over from button trigger mode to auto-sense mode while placing scanner on its stand or charging cradle. SG800/BT is a high performance barcode scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

  • Support major 1D and GS1 Databar linear and stacked codes.
  • Various configurable reading modes supported.
  • Smart detection, reading speed up to 500 scans per second.
  • Support automatic sense reading and is able to read under 0 Lux dark environment.
  • Support multiple interface options, USB HID, Virtual COM and RS-232.
  • Designed as IP42 sealing protection.
  • With intelligent activation*, it automatically switches over to automatic-sense reading while placed on the stand. Note: *Only for SG801
  • Both contact and air 16KV Electro-Static discharge.
  • A stand option can be ordered to facilitate hand-free reading options.
  • Vibration when scanning (optional)
  • Applicable on Android tablet or smart phone with optional cable.
  • 1D Codes
  • GS1

  • SG800BT

    SG800BT

  • Compare to

Tech Specs

Environmental

Operating temperature Storage temperature Humidity Ambient light
0°C to 50°C (32°F to 122°F) -20°C to 70°C (-4°F to 158°F) 20% to 95% (Non-condensing) 100,000 Lux Max.
- - 0°C to 50°C (32°F to 122°F) - - -20 °C to 50 °C (-4 °F to 122 °F ) -20 °C to 50 °C (-4 °F to 122 °F ) - -20 °C to 50 °C (-4 °F to 122 °F ) -20°C to 50°C ( -4°F to 122°F ) - - - - - - - - -20°C to 70°C (-4°F to 158°F) - - -20 °C to 60 °C (-4 °F to 140 °F ) -20 °C to 60 °C (-4 °F to 140 °F ) - -20 °C to 60 °C (-4 °F to 140 °F ) -40°C to 60°C ( -40°F to 140°F ) - - - - - - - - 20% to 95% (Non-condensing) - - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - - - - - - - 100,000 Lux Max 100,000 Lux Max. - 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight) Up to 100,000 Lux Up to 100,000 Lux Up to 100,000 Lux Up to 100,000 Lux Max.(sunlight) Up to 5,000 Lux Up to 5,000 Lux

Specifications

Dimension(WxDxH) Light Source Filed of View Depth of Field Resolution Scan Rate Pitch Skew Indicators Drop Resistance Print Contrast Ratio Sealing
73.5 mm W x 76.2mm H x 173 mm L Visible Red light 635±5nm LED Horizontal: 45° Up to 550mm@20mil/0.5mm, PCS90%, Code39 4mil/0.1mm@PCS90%, Code39 Smart detection, up to 500 scans per second ±10°~65°(±5°) ± 60°(±5°) Beep and LED (Good read Green) 59.05 inches(150cm) drop on concrete surface 25% IP42 water and dust protection
- 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） L167x W70 x H88mm - 169.2 x 71.1 x 62.6 mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm 169.2x71.1x62.6mm - White light LED White light LED Visible Red light 635nm ±5nm LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer 632±5nm Red LED 632±5nm Red LED 625±5nm Red LED 625±5nm Red LED 650±10nm VLD 650±10nm VLD - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Smart detection, up to 500 scans per second Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° Horizontal: 45° Horizontal: 45° Horizontal: 40°, Vertical: 25° Horizontal: 40°, Vertical: 25° Horizontal: 45° Horizontal: 45° - - - Up to 550mm@20mil/0.5mm, PCS90%, Code39 - - - 320 mm@20mil/0.5mm, PCS90%, Code39 - 420 mm@20mil/0.5mm, PCS90%, Code39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 500mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 Up to 300mm@20mil/0.5mm, PCS90%, Code 39 - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 4mil/0.1mm@PCS90%, Code39 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 4mil/ 0.1mm 4mil/ 0.1mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 1D: 4mil/0.1mm ; 2D: 5mil/0.127mm 5mil/0.127mm 5mil/0.127mm - 60 fps 60 fps (at full resolution) Horizontal: 45° 60 fps (at full resolution) - - Motion toerlance 25cm per second - Motion tolerance: 35cm per second Smart detection, up to 500 scans Smart detection, up to 500 scans 1D mode: 120 scans; 2D mode: 60 images 60 images per second 50 scans ±5% 50 scans ±5% - - 5°~60° (±5°) - - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~60° (±5°) - - - - - - - - 5°~60° (±5°) - - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~55° (±5°) - - - - - - - - Beeper and LED Beep and LED (Good read Green) - Beep and LED Beep and LED - Beep and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED Beeper and LED - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) 47.2 inches(120cm) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model);1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model); 1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) 1.5m (wired model) ;1.2m (wireless model) - PCS30%@5mil/0.127mm - 25% PCS25% PCS25% >=25% >=25% >=PCS15% ≥15% 25% 25% 25% 25% 30% 30% - IP41 water and dust protection IP42 water and dust protection - IP42 water and dust protection - - - - - - - - - - -

Weight

Body weight
Approx. 165g / 5,83 oz
- - Approx. 160g / 5,65 oz - - - - 184.9g (Scanner)/ 113.4g (Cradle) - - - - - - - -

Wireless Characteristics

Wireless Standard Battery Recharge Time Scan Per Charge Radio Transmission Range
Bluetooth V2.1, HID and SPP profile supported Li-ion 3.7V / 2600 mAh Approx. 5 hours 50,000 times in continuous read Class 1, up to 100m (in open space)
- - HID and SPP profile supported - - - - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 Bluetooth V2.1, HID and SPP profile supported Bluetooth V2.1, HID and SPP profile supported - Bluetooth V2.1, HID and SPP profile supported Bluetooth V2.1, HID and SPP profile supported Bluetooth V2.1, HID and SPP profile supported - - Li-ion 3.7V / 2600 mAh - - - - Li-Ion 3.7V/2000mA - Li-Ion 3.7V/2000mA Lithium-ion Battery (3.7V, 2600mAh) Lithium-ion Battery (3.7V, 2600mAh) - Lithium-ion Battery (3.7V, 2600mAh) Lithium-ion Battery (3.7V, 2600mAh) Lithium-ion Battery (3.7V, 2600mAh) - - Approx. 5 hours - - - - Approx. 7 hours (5V@1000mA) - Approx. 7 hours (5V@1000mA) Approx. 5 hours Approx. 5 hours - Approx. 5 hours Approx. 5 hours Approx. 5 hours - - 20,000 times in continuous read - - - - >= 12 hours in continuous read - >= 12 hours in continuous read 50,000 times (continuous read) 50,000 times (continuous read) - 20,000 times (continuous read) 50,000 times (continuous read) 50,000 times (continuous read) - - - - - - - >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2 - >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2 Class 1, up to 100m (in open space) Class 1, up to 100m (in open space) - Class 1, up to 100m (in open space) Class 1, up to 100m (in open space) Class 1, up to 100m (in open space)

Electrical Characteristics

Interface Power
RS232, USB (HID, Virtual COM), KBW DC 5V
- RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) - USB or RS-232, cable is non-replaceable - Support USB HID, Virtual COM and RS-232 interfaces. - RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM), KBW - DC 5V DC 5V DC 5V DC 5V - - - - - DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-Virtual COM E-Catalogue LED and Beeper Indicator Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-

  2. Battery-600/700 Series

    • Battery-600/700 Series
    • P/N0112-85A0051
    • RemarkLithium Rechargeable Battery 3.7V 2600mAh
    • Color-

  3. Cable-CHK-600/700 Cradle-RS232(Black)

    • Cable-CHK-600/700 Cradle-RS232(Black)
    • P/N0114-SG70021
    • RemarkRS-232 Interface cable for Cradle, DB9F RS232+RJ45 10P Black color length 1.5m
    • ColorBlack

  4. Cable-CHK-600/700 Cradle-USB(Black)

    • Cable-CHK-600/700 Cradle-USB(Black)
    • P/N0114-SG70051
    • RemarkUSB interface cable for Cradle, USB A TYPE MALE +RJ45 10P Black color Length 1.5m
    • ColorBlack

  5. Cable-CHK-Cradle-PS/2(Black)

    • Cable-CHK-Cradle-PS/2(Black)
    • P/N0114-G501121
    • Remarkinterface cable for Cradle, KBW RJ45 10PFLAT HEAD+MD6M+MD6F straight cable black color length 1.5m
    • ColorBlack
