Features

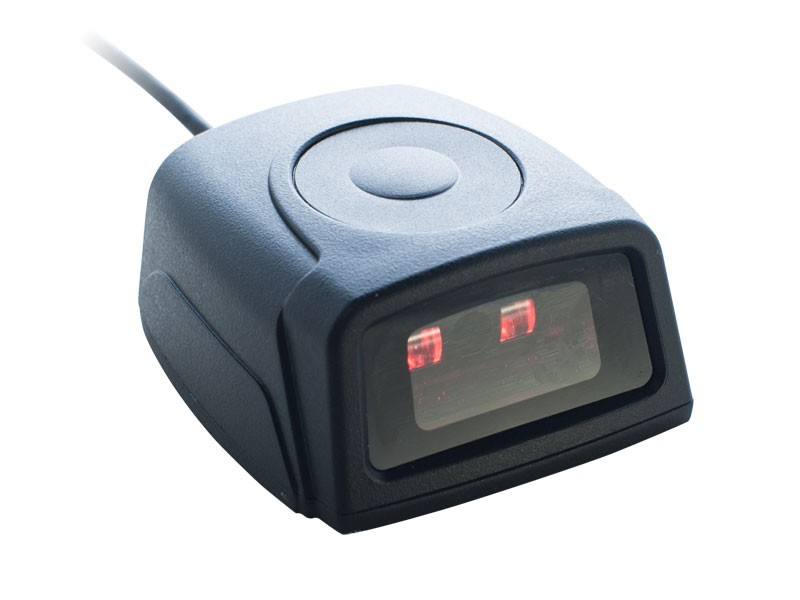

The FS700 is equipped with ultra-compact high performance CCD imager bar code scanning engine, ideal for OEM applications in devices including POS, medical devices, kiosks, lottery terminals and access control devices, a stand option can be ordered to facilitate desktop hand-free reading options. Performance : Its auto-shuttle-emulation-like smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. A stand option can be ordered to facilitate hand-free “ continuous mode” reading options. Everything has been done to simplify the integration of the FS700, compact size, multiple mounting possibilities and <a href="http://www.replicaukonline.com/">best replica watches</a> multiple interfaces selection, such as standard RS232 & USB-HID and USB Virtual COM port. With its built-in automatically turn off reading and switch on reading as it sense a bar code moving in front of it, can extend its lifespan. its 100,000 LUX ambient light resistance, hand-on software-programming function, this FS700 is the best choice ever for various fixed mount/build in OEM bar code scanning application.

  • Easily integrated with various OEM application.
  • Fixed mount linear imager bar code scanner which offers superior 1D scanning.
  • Compact and lightweight design is flexible for external application requirement.
  • Read major 1D bar codes, GS1 Databar linear and stacked bar codes.
  • Support automatic detection and wake up reading mode.
  • Reading depth is up to 500mm (20mil/0.5mm@code39 pcs90%).
  • Smart Detection, speed up to 500 scans per second.
  • Rugged casing that supports IP65 Dropping from 1.8m
  • 1D Codes
  • GS1
  • FS700

    FS700
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux
- - - Up to 100,000 Lux - Works in any lighting conditions from 0 to 100,000 lux - 0 lux up to 100,000 lux. 0 lux up to 3,000 lux. 0 lux up to 3,000 lux. - - - 0 to 3000 lux, avoid direct sunlight - - - - - - Up to 100,000 Lux - - - - - - - - - up to 100,000 Lux - Up to 100,000 Lux - - Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight) Up to 1,500 Lux (direct sunlight)

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio IP Rating
64.6x59.2x30mm 632±5nm Red LED Up to 500mm@20mil/0.5mm, PCS90%, Code 39 0.1mm/4mil Smart detection, up to 500 scans Beeper and LED 30% IP65
- - - 69x56x27.7mm - Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D - - - - - - - - - - 25x20x11.5mm - - - 69x56x27.7mm - 25x20x11.5mm - - - - - - - - - 64.6x59.2x30mm - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - - - - - 632±5nm Red LED - White light LED - White light LED - - White light LED x 6 White light LED x 6 - - - - 632±5nm Red LED - - - 625±5nm Red LED RED LED/ IR 632±5nm Red LED - - - - - - - - - 625±5nm Red LED - - 660nm Red LED 660nm Red LED 660nm Red LED - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - 280mm@20mil/0.5mm, PCS90% - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - Up to 250mm@20mil/0.5mm, PCS90% - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - Contact Type Contact Type Contact Type - - - 0.1mm/4mil - - - 3mil/0.076mm@PCS90% Code39,8mil/0.2mm@PCS90% QRCode - - - 1280(H) x 800(V) pixels - - - - 4mil/0.1mm - - - 1D: 4mil/0.1mm ;2D: 8mil/0.2mm 5.9mil/0.15mm 4mil/0.1mm - - - - - - - 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode - - - 500 ppi, Image:1600 x 1500 pixels 5mil/0.127mm 5mil/0.127mm - - - - Smart detection, up to 500 scans 100-1000mm/sec 60 images per second - 60 fps (at full resolution) - - - - - - - - Smart detection, up to 500 scans - - - 60 images 100-1000mm/sec 100 scans ±10% - - - - - - 100-1000mm/sec - - 60 images 100-1000mm/sec Min frame rate > 8fps 50-500mm/sec 50-500mm/sec - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - Good read beep - Beeper - - - - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - Beeper - Beeper - - - - - - - - - Beeper and LED - - - - - - - - 30% - - - 30%@5mil/0.127mm - - - - - - - - 25% - - - 30% - 25% - - - - - - - - - 30% - - - - - - - IP54 N/A - - - - - - - - - - - IP54 - - - - N/A - - - - - - - - - - - IP65 - - - - -

Electrical Characteristics

Interface Power
RS-232, USB (HID, Virtual COM) DC 5V
- - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable a USB or RS-232 wired cable to a host 1.5m USB , VCOM or UART 1.5m USB , VCOM or UART - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - - TTL/KBW/RS232/USB USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USB 2.0 - - - - - - DC 5V - - - - - - 5V/0.5A 5V/0.5A - - - - DC 5V - - - DC 5V - DC 5V - - - - - - - - - DC 5V - USB Host, Voltage Level: 4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA - - -
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-FS/FL/FI7xx Series-RS232

    • Cable-CHK-FS/FL/FI7xx Series-RS232
    • P/N0114-FI71011
    • RemarkRS232 interface cable for Fixed mount FS/FI/FL series, A Type + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
  3. Cable-CHK-FS/FL/FI7xx Series-USB

    • Cable-CHK-FS/FL/FI7xx Series-USB
    • P/N0114-FI71001
    • RemarkUSB Interface cable for Fixed mount FI/FS/FL series, USB A Type +Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
