Features

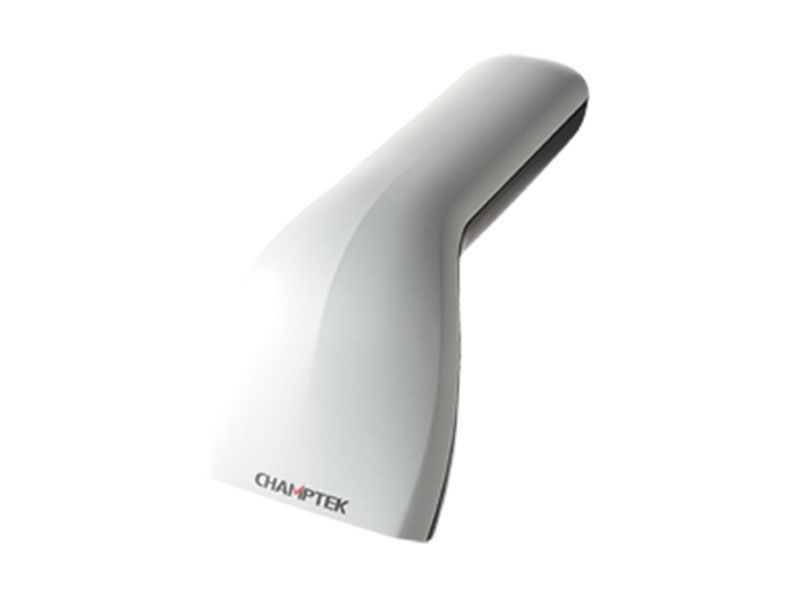

The SD120 linear imager barcode scanner is a reliable, economical contact type bar code reader suitable for a wide range of environments. The SD120’s features and price make it the best solution for retail, medical and light industrial applications. The SD120’s flexible, multiple interface design supports keyboard wedge, RS232 and USB interface by simply replacing the cable. This scanner provides reliable scanning depth from contact to 60mm, its powerful built-in decoder reads and discriminates all major 1D symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. Barcode menus provide extensive configuration options. The SD120 Scanner is manufactured at our ISO 9001 certified factory and comes with a 2-year warranty.

  • Economical, Ergonomic and durable design.
  • Easy to use and configure.
  • Contact to 6cm reading range imager bar code scanner.
  • Extensive connectivity.
  • Reads most 1D bar code symbologies includes GS1 Databar.
  • 1D Codes
  • GS1
  • SD120

    SD120
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 5,000 Lux Max
- Up to 20,000 Lux Max Up to 20,000 Lux Max Up to 10,000 Lux Max

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Width of Field
166.4 x 78 x 77.8mm 632±5nm Red LED Contact to 60mm@20mil/0.5mm, PCS90%,Code39 4mil/0.1mm 120 scans Beeper 1.2m 30% 80mm (60mm at window)
- 173.5 x 90 x 56.2mm 171.3 x 82.8 x 75mm 168 x 65 x 54.9mm - 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - Contact to 50mm@20mil/0.5mm, PCS90%, Code39 Contact to 80mm@20mil/0.5mm, PCS90%,Code39 Contact to 200mm@20mil/0.5mm, PCS90%, Code39 - 4mil/0.1mm 3mil/0.076mm 4mil/0.1mm - 120 scans 200 scans±10% 100 scans±10% - Beeper and LED Beeper and LED Beeper - 1.2m 1.2m 1.5m - 30% 30% 25% - 90mm (80mm at window) 90mm (80mm at window) 90mm (40mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-PS/2(Beige)

    • Cable-CHK-PS/2(Beige)
    • P/N0114-2150111
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  3. Cable-CHK-PS/2(Black)

    • Cable-CHK-PS/2(Black)
    • P/N0114-2150121
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  4. Cable-CHK-RS232(Chip, Beige)

    • Cable-CHK-RS232(Chip, Beige)
    • P/N3114-5801131
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  5. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • P/N3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  6. Cable-CHK-USB(Beige)

    • Cable-CHK-USB(Beige)
    • P/N0114-980A131
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Beige color length 1.5m
    • ColorBeige
  7. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • P/N0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  8. Stand-300 Series(Holder, Beige)

    • Stand-300 Series(Holder, Beige)
    • P/N0121-CH02011
    • RemarkPlastic Holder for SG3xx/LG3xx/IG3xx Series
    • ColorBeige
