Features

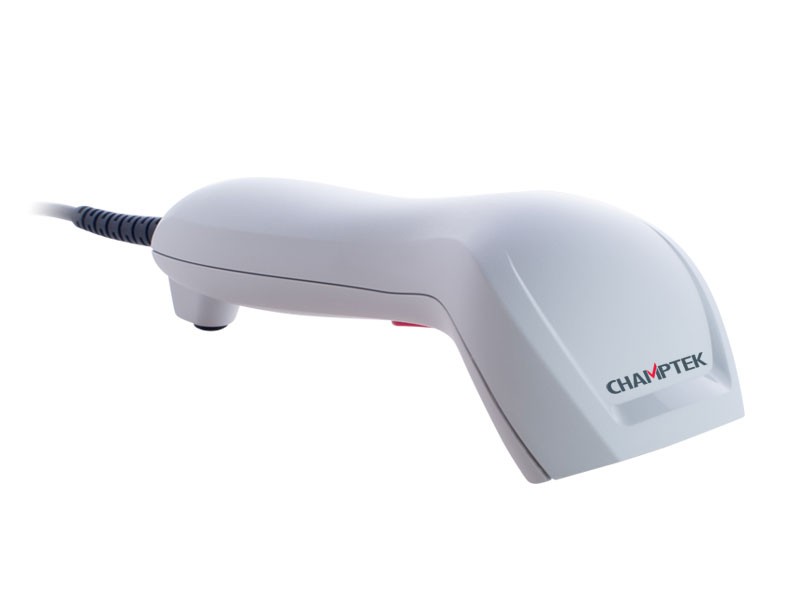

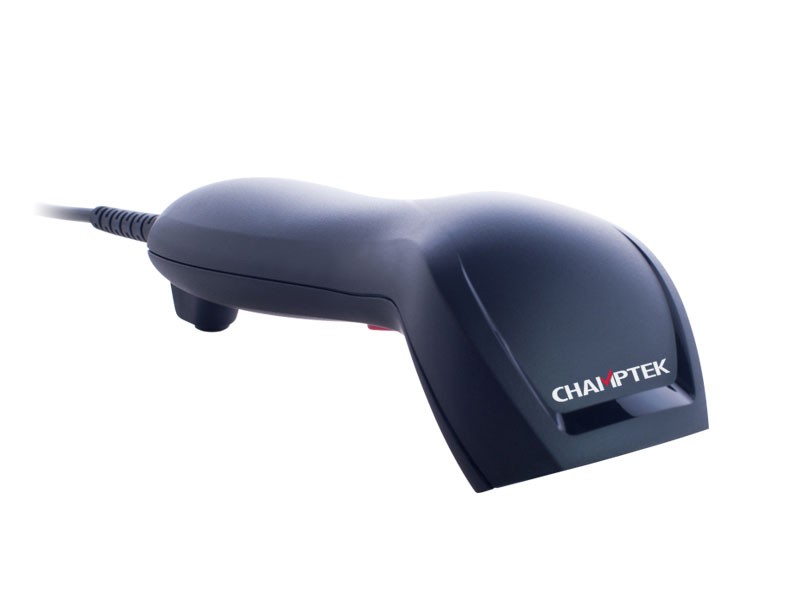

SD380 linear imager barcode scanner brings unmatched performance along with the latest advanced technology to the point-of-sale checkout operations, and it is a reliable bar code reader suitable for a wide range of environments. SD380’s features and its outstanding price-performance ratio make it the best solution for retail and light industrial applications. SD380 provides 'black' or 'warm gray' color as option, emphasizing the curving lines of the new enclosure and supports keyboard wedge, RS232 and USB interface. The powerful built-in decoder reads and discriminates all major 1D bar codes and GS1 DataBar™ symbologies, including damaged or poorly printed and codes on display, reducing processing time and labor costs, while increasing accuracy. Its programming menus provides extensive configuration options. A stand or holder option can be ordered to facilitate hand-free reading option and configured to its auto-sense and reading can extend its lifespan. SD380 provides customers with the most cost-effective solution in the market and is the best choice for any retail environments.

  • The best price-performance ratio solution in the market for retail and light industrial applications.
  • Available for Gray and Black color choice.
  • Reading depth from window up to 200mm.
  • Support minimum resolution 4 mil/0.1 mm.
  • Reads most 1D bar code symbologies include GS1 Databar codes.
  • Facilitates both contact and air 16KV Electro-Static discharge
  • Designed as IP41 sealing protection.
  • Support multiple Interface options, USB / RS-232 / Keyboard Wedge.
  • A stand or holder option can be ordered to facilitate hand-free reading options.
  • Applicable on Android tablet or smart phone with optional cable.
  • 1D Codes
  • GS1
  • SD380

    SD380
  • Compare to

Tech Specs

Environmental

Ambient light Electro-Static Discharge(ESD)
Up to 10,000 Lux Max Both contact and air at up to 16KV
- Up to 5,000 Lux Max Up to 20,000 Lux Max Up to 20,000 Lux Max - - - -

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Sealing Width of Field
168 x 65 x 54.9mm 632±5nm Red LED Contact to 200mm@20mil/0.5mm, PCS90%, Code39 4mil/0.1mm 100 scans±10% Beeper 1.5m 25% IP41 water and dust protection 90mm (40mm at window)
- 166.4 x 78 x 77.8mm 173.5 x 90 x 56.2mm 171.3 x 82.8 x 75mm - 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - Contact to 60mm@20mil/0.5mm, PCS90%,Code39 Contact to 50mm@20mil/0.5mm, PCS90%, Code39 Contact to 80mm@20mil/0.5mm, PCS90%,Code39 - 4mil/0.1mm 4mil/0.1mm 3mil/0.076mm - 120 scans 120 scans 200 scans±10% - Beeper Beeper and LED Beeper and LED - 1.2m 1.2m 1.2m - 30% 30% 30% - - - - - 80mm (60mm at window) 90mm (80mm at window) 90mm (80mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Stand-380 Series

    • Stand-380 Series
    • P/N7184190202D0000
    • RemarkStand for SD38x/IG38x Series
    • ColorBlack
